Brand: Camden Door Controls | SKU: 784008

Camden Door Controls CM-AF500 | Single Gang LED Illuminated Annunicator

Regular price $115.03
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

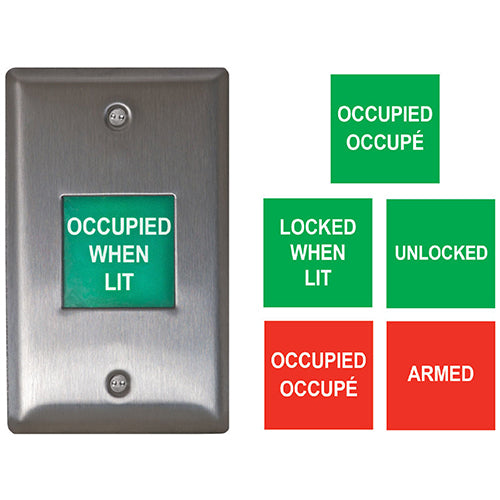

The CM-AF500 Series single gang illuminated annunciators are designed to provide critical messages to building occupants. When not illuminated, the sign (text and/or graphics) is invisible. When illuminated, the text/graphics are highly visible - even in bright daylight. Weatherproof and vandal resistant, with an almost limitless choice of text and graphics, CM-AF500 series annunicators are ideal for use with automatic door, access control, fire alarm and public safety systems. Labels for the CM-AF500 include 'Occupied When Lit', 'Locked When Lit' (Green), 'Occupied/Occupe' (Red and Green), 'Armed' (Red), 'Unlocked' (Green)

Key Features

  • (6) message insert labels included, English and (Fr/Eng) bilingual
  • Custom messages (text, graphics and colors) available upon request
  • 'Super bright' LEDs for high visability, even in daylight
  • Text/graphics are not legible when not illuminated
  • Vandal and weather resistant construction
  • Heavy guage stainless steel face plate
  • Low current draw
  • 3 year warranty

Specifications

Specifications

UPC670454168726
Also known asCMAF500, CM-AF500
MountingStandard single gang electrical box
Voltage10 - 36 VDC Can be powered by door operator output
Current Draw25mA - 40mA
Temp Range32F - 176F (0C - 80C)
Construction18 gauge stainless steel faceplate
Std. FinishUS 32/C32D
Dimensions2 3/4" W x 4 1/2" H x 9/16" D (70mm x 114mm x 15mm)
