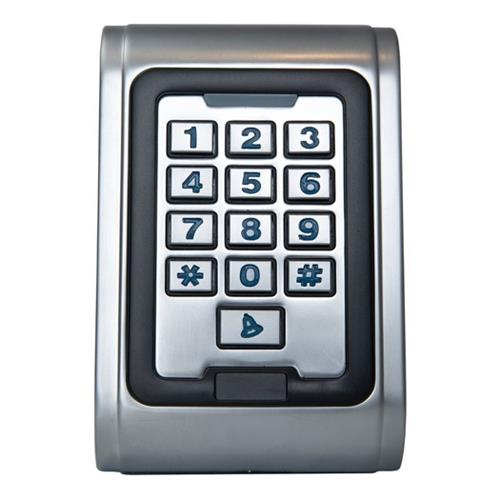

Camden Door Controls CM-CV-550SPK | Stand-Alone Proximity Reader and Keypad
Regular price
$225.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CM-CV-550SPK | Stand-Alone Proximity Reader an...
Regular price
$225.34
Unit price
Brand: Camden Door Controls
|
SKU:
791654
Regular price
$225.34
Unit price
Shipping calculated at checkout.
Description
Description
The Camden CV-550SPK stand-alone, HID format prox reader and keypad, supports up to 2000 users with card, PIN, or card and PIN access. It features a cast metal housing and backlit keypad with fully potted electronics, making CV-550SPK both weather (IP 68 rated) and vandal resistant. In addition, the CV-550SPK has inputs for REX switch/sensor, door contacts, as well as a Form 'C' relay, tamper, and Wiegand 26 bit input and output. User cards or tags can easily be individually or batch enrolled.
Key Features
- Up to 2,000 users - Card, PIN, Card + PIN
- Batch card/tag enrollment
- Cast metal, heavy duty construction
- Backlit vandal resistant keypad
- Weather resistant IP68 rated
- Supports card, PIN, card + PIN (HID 26, 34 and 37 bit, HID and EM format)
- 4 to 6 digit PIN code length
- (1) Form 'C' relay output
- Tamper alarm output
- Request to exit device input
- Door contact input
- Adjustable door alarm time and door open time
- Wiegand 26 bit output for integration with access control systems
- Wiegand 26 bit input/output
- 3 year warranty
Specifications
Specifications
Specifications
| UPC | 670454179418 |
|---|---|
| Also known as | CV550SPK, CM-CV550SPK |
| Voltage | 12 VDC +/- 10%. |
| User Codes | 2000 |
| IP Rating | 68 |
| Idle Current | 25mA |
| Contact Type | (1) Form 'C' |
| Contact Rating | 1 amp@30V DC |
| Alarm Output Load | 1 amp@30VDC |
| Ring Bell Load | 1 amp@30VDC |
| Card Read Distance | 1.75" (40mm) Max |
| Card Frequency | 125KHZ, EM and HID |
| Card Format | 26, 34 or 37 Bit Wiegand |
| Keypad Format | 4 Bit, 8 Bit and Virtual Card Number |
| Temp Range | -49F to 113F (-45C to 55C) |
| Dimensions | 4 13/16" H x 3 1/8" W x 1 1/16" D (121.67mm x 79.50mm x 26.42 mm) |
