Brand: Camden Door Controls
|
SKU:
728483
Camden Door Controls CM-CX-1085M | Pneumatic Time Delay for Push Buttons
Regular price
$152.33
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CM-CX-1085M | Pneumatic Time Delay for Push Bu...
Regular price
$152.33
Unit price
Brand: Camden Door Controls
|
SKU:
728483
Regular price
$152.33
Unit price
Description
Description

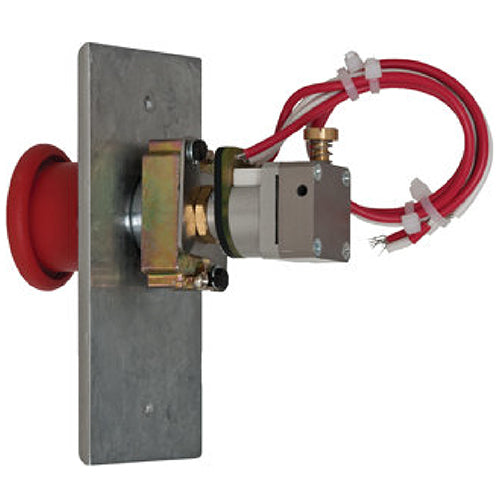

Built tough for any indoor or outdoor application, the Camden CX-1085M pneumatic time delay switches provide mechanical control with easy 'thumb screw' time adjustments from 1 to 60 seconds. The unit is designed for push buttons.
Key Features
- 1 to 60 second timer
- DPST contacts rated 1 amp @ 125V DC
- May be ordered separately, or factory installed on select exit button and key switch models
- Switch option for CM-4085, CM-4185, CM-5085, CM-7085, CM-7185, CM-8085 and CM-8185 push buttons
Specifications
Specifications
Specifications
| UPC | 670454166968 |
|---|---|
| Also known as | CX1085M, CM-CX1085M |
| Operating Force | 8 oz Max |
| Contact Rating | 5A@24V DC |
| Time Delay | 1 - 60 Seconds +/-15% |
| Temp Range | 15F to 120F (-9C to 49C) |
| Endurance | 1,000,000 Operations |
| Dimensions | 1" x 1-3/8" x 2" (25mm x 35mm x 51mm) |
