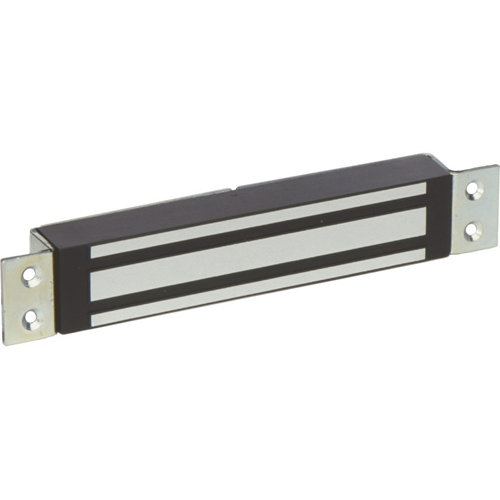

Camden Door Controls CM-CX-90M-03 | Single Door Magnetic Lock, Mortise Mount, 300 lbs
Regular price
$152.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CM-CX-90M-03 | Single Door Magnetic Lock, Mort...
Regular price
$152.57
Unit price
Brand: Camden Door Controls
|
SKU:
765719
Regular price
$152.57
Unit price
Shipping calculated at checkout.
Description
Description
The Camden CX-90M-03 single door magnetic locks offers the best performance and value. The unit has a holding force of 300 lbs and is designed for single doors and mortise mounting.
Key Features
- Weather and vandal resistant construction proven over thousands of installations
- Surface and mortise mount models
- Compatible with all access/egress systems
- Field selectable 12/24V DC operation
- On board MOV power surge protection prevents damage to mag lock
- A wide range of mounting brackets and spacers available
- Lifetime Warranty
Specifications
Specifications
Specifications
| UPC | 670454150288 |
|---|---|
| Also known as | CX90M03, CM-CX90M03 |
| Voltage | 12/24V DC |
| Current Draw | 480mA@12V DC, 240mA@24V DC |
| Temp Range | 5F - 122F (-15C to 50C) |
| Contact Rating | TDS versions |
| Bond Sensor | 1A@30V DC |
| Door Status Switch | 0.5A@30V AC/DC |
| Dimensions | 8" x 1 3/8" x 13/16" (203mm x 35mm x 21mm) |
