Brand: Camden Door Controls | SKU: CS346693

Camden Door Controls CM-CX-91S-06 | Single Door Magnetic Lock, Surface Mount, 600 lbs

$158.94

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

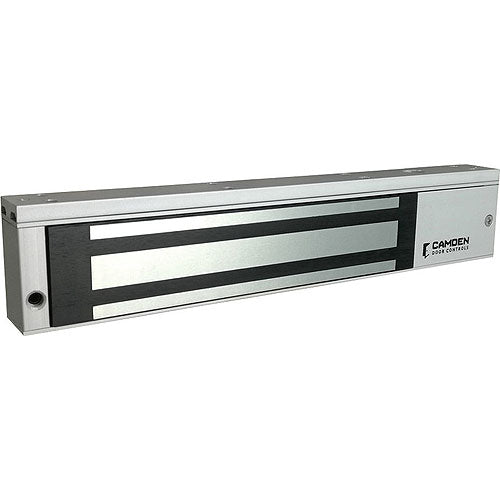

The Camden CX-91S-06 is a single door magnalock with a holding force of 600 lbs that can be surface mounted.

Key Features

600 lb single door models are UL and CUL listed
Weather and vandal resistant construction proven over thousands of installations
Surface mount model
Compatible with all access/egress systems
Field selectable 12/24V DC operation
On board MOV power surge protection prevents damage to mag lock
A wide range of mounting brackets and spacers available
Lifetime Warranty

Specifications

UPC	670454150325
Also known as	CX91S06, CM-CX91S06
Voltage	12/24V DC
Current Draw	480mA@12V DC, 240mA@24V DC
Temp Range	5F - 122F (-15C to 50C)
Contact Rating	TDS versions
Bond Sensor	1A@30V DC
Door Status Switch	0.5A@30V AC/DC
Dimensions	9-7/8" x 1-7/8" x 1" (251mm x 48mm x 25mm)
