Brand: Camden Door Controls
|
SKU:
765723

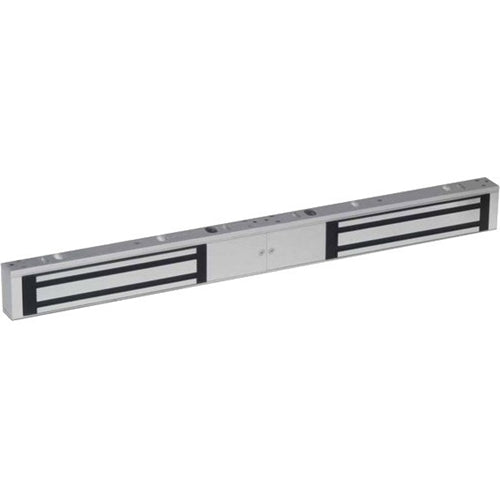

Camden Door Controls CM-CX-92S-06 | Double Door Magnetic Lock, 600lbs, Surface Mount
Regular price
$281.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CM-CX-92S-06 | Double Door Magnetic Lock, 600l...
Regular price
$281.00
Unit price
Brand: Camden Door Controls
|
SKU:
765723
Regular price
$281.00
Unit price
Shipping calculated at checkout.
Description
Description
The Camden CX-92S-06 double door magnetic lock with a 600 pound holding force offers the best performance and value. There are models available with the option of a built-in 'TDS' module, that provides an adjustable timer, lock sensor, door status switch, relay and LED.
Key Features
- Weather and vandal resistant construction proven over thousands of installations
- Compatible with all access/egress systems
- Field selectable 12/24V DC operation
- On board MOV power surge protection prevents damage to mag lock
- A wide range of mounting brackets and spacers available
- Lifetime Warranty
Specifications
Specifications
Specifications
| UPC | 670454150370 |
|---|---|
| Also known as | CX92S06, CM-CX92S06 |
| Voltage | 12/24V DC |
| Current Draw | 2 x 500mA@12V DC, 2 x 250mA@24V DC |
| Temp Range | 5F to 122F (-15C to 50C) |
| Bond Sensor | 1A@30V DC |
| Door Status Switch | 0.5A@30V AC/DC |
| Dimensions | 19 5/8" x 1 7/8" x 11/16" (498m x 48mm x 17mm) |
| Armature Plate | 2 x 7 15/16" x 2 3/16" x 5/8" 2 x (202mm x 56mm x 16mm) |
