Brand: Camden Door Controls | SKU: 765724

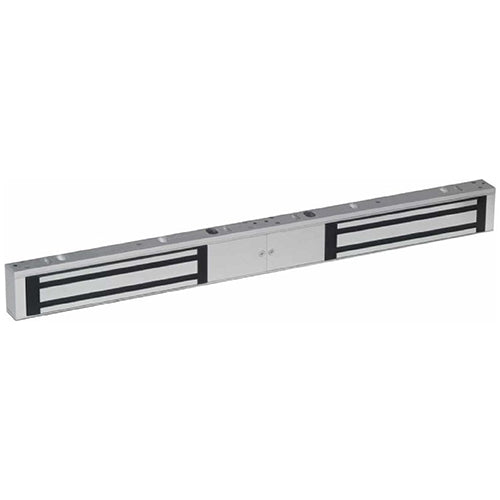

Camden Door Controls CM-CX-92S-12 | Double Door Magnetic Lock, 1200lbs, Surface Mount

$348.38

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The Camden CX-92S-12 double door magnetic lock with a 1200 pound holding force offers the best performance and value. There are models available with the option of a built-in 'TDS' module, that provides an adjustable timer, lock sensor, door status switch, relay and LED.

Key Features

Weather and vandal resistant construction proven over thousands of installations
Compatible with all access/egress systems
Field selectable 12/24V DC operation
On board MOV power surge protection prevents damage to mag lock
A wide range of mounting brackets and spacers available
Lifetime Warranty

Specifications

UPC	670454170095
Also known as	CX92S12, CM-CX92S12
Voltage	12/24V DC
Current Draw	2 x 500mA@12V DC, 2 x 250mA@24V DC
Temp Range	5F to 122F (-15C to 50C)
Contact Rating	TDS Models Only
Bond Sensor	1A@30V DC
Door Status Switch	0.5A@30V AC/DC
Dimensions	21" x 2 7/8" x 1 7/8" (533mm x 73mm x 48mm)
Armature Plate	2 x 7 15/16" x 3" x 5/8" 2 x (202mm x 76mm x 16mm)
