Brand: Camden Door Controls | SKU: 879577

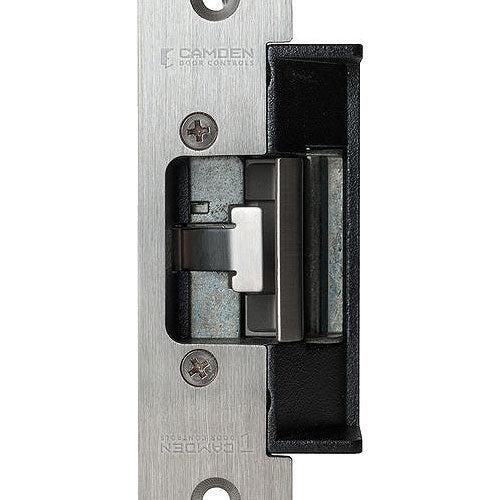

Camden Door Controls CM-CX-ED1079DL | Standard Depth Universal Electric Strike, 5/8" - 3/4" Throw, Latch Monitoring

$189.46

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The Camden CX-ED1079DL Grade 1 ANSI strikes for cylindrical locksets offer the very best strike quality and performance, with three stainless steel faceplates provided. The standard depth Universal strike design delivers unparalleled application flexibility, with field selectable voltage, fail safe/fail secure operation and mechanical adjustment of the strike body. The strike includes latch monitoring.

Key Features

Centerline latch entry for cylindrical and mortise locksets.
Standard Depth. 5/8" to 3/4" latch projection (throw)
Latch monitoring
Selectable 12/24V, AC/DC
Selectable fail safe/fail secure operation
Horizontal adjustability of strike faceplate/body
3 stainless steel faceplates included: ANSI square, hollow metal and wood door frame
Continuous duty operation
Non-handed
5 year warranty

Specifications

UPC	670454179920
Also known as	CXED1079DL, CM-CXED179DL
ANSI Grade	GRADE 1
Locking State	SELECTABLE FS OR FSE
Max Latch Length - Inch	MAXIMUM 5/8 INCH THROW
Sales Category	ELECTRIC STRIKE
Switches	LATCHBOLT MONITOR
Voltage and Duty CONT	SELECTABLE 12/24V DC
Voltage and Duty INT	12 OR 24V DC
UNSPSC Code	31162407
