Brand: Camden Door Controls | SKU: 936279

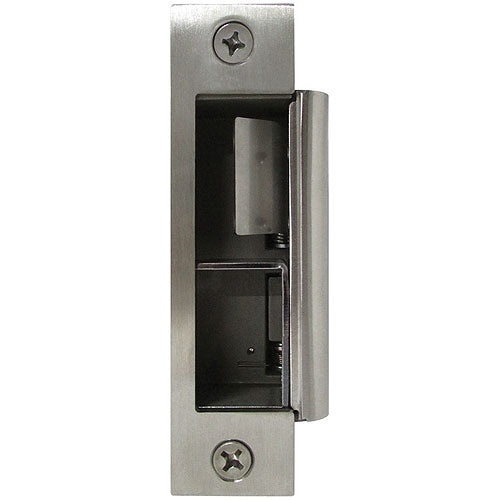

Camden Door Controls CM-CX-ED1579L | Grade 1 "All in One" Fire Rated Electric Strike, 12/24 VAC/DC

$487.19

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The Camden CX-ED1579L Grade 1 electric strike for mortise and cylindrical locksets offers the very best strike quality and features, with the added value of built-in latch monitoring, five stainless steel faceplates and 'Universal' performance, including field selectable voltage and fail safe/fail secure operation.

Key Features

For Mortise and Cylindrical Locksets
3/4 (19mm) Latch Projection (Throw)
5 Stainless Steel Faceplates Included
Selectable Fail Safe/Fail Secure Operation
Selectable 12/24V AC/DC
Latch Monitoring
Non-Handed, LH/RH
Easy Fit Connectors for Power and Monitoring Wires
Stainless Steel Strike Body
5 Year Warranty

Specifications

UPC	670454184368
Also known as	CXED1579L, CM-CXED1579L
Voltage	12/24V AC/DC
Current Draw	260Ma @ 12V AC/DC, 150Ma @ 24V AC/DC
Static Strength	1,500 Lbs.
Dynamic Strength	70 Ft-Lbs.
Mode	Fail-Safe/Fail-Secure, Field Selectable
Operation	AC - Buzz, DC - Silent
Duty	Continuous (DC)
Mounting	Non-Handed
Endurance	1,500,000 Cycles (Factory Tested), 250,000 Cycles (Ul Verified)
Fire Rating	UL10C/Can4-S104 3 Hrs. (Fail Secure Only)
Latch Bolt Monitor	SPDT, 100Ma @ 24V DC
Dimensions	Body: 4 7/8"H X 1 1/4"W X 1 3/4"D (124mm X 32mm X 45mm)
