Brand: Camden Door Controls | SKU: 731020

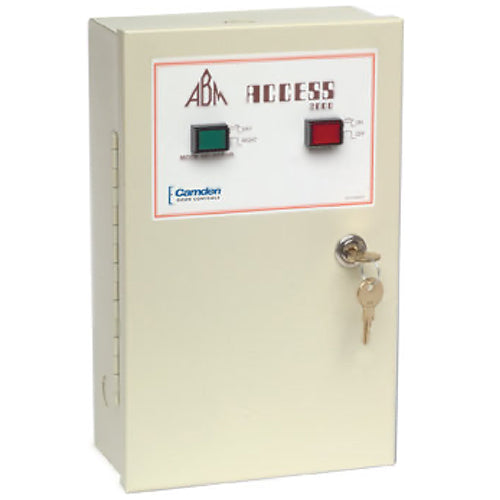

Camden Door Controls CM-CX-EMF-2ABM | Multi-function Relay, ABM Metal Cabinet, 2 Control Switches

$628.98

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The EMF-2ABM is Camden's most sophisticated door control relay and is designed to easily and quickly support a variety of specialized door-control applications. A dedicated 12V/5V LED output suitable for an illuminated Occupied sign is also provided. The unit is equipped with a secure lockable ABM metal cabinet and two control switches.

Key Features

ABM Metal cabinet
2 control switches
Microprocessor control
3 mode selector switch
5 adjustable timers, 1-30 seconds each
LEDs for visual confirmation
May be used on normally locked and normally unlocked restroom doors
12-24V AC/DC
Plug-In connectors facilitate wiring
SPDT contacts rated 3 amps @ 30V DC
7 dry inputs
Use with fail-safe and fail-secure locks
3 year warranty

Specifications

UPC	670454171900
Also known as	CXEMF2ABM, CM-CXEMF2ABM
Voltage	12/24V AC/DC
Current Draw	150mA Nominal, 500mA Maximum
Response Time	.3 Seconds
Input	7 Dry Momentary Contacts and 1 Digital
Output	5 x Form C (SPDT), 1 Digital Output
Contact Rating	3A@30V DC
Electrical Life	500,000 Operations @ 1/2 rated Capacity
Time Delay	5 Pots adjustable from 1-30 Seconds
Dimensions	12"L x 7 1/2"W x 3 3/4"D (305mm x 190mm x 95mm)
Mounting	4 x #8 Metal Screws
Enclosure	Beige Metal Cabinet

Documents and Downloads
