Camden Door Controls CM-TX-9 | Wall Switch Transmitter
Regular price
$62.04
Unit price
Brand: Camden Door Controls
|
SKU:
CS462849
Regular price
$62.04
Unit price
Description
Description

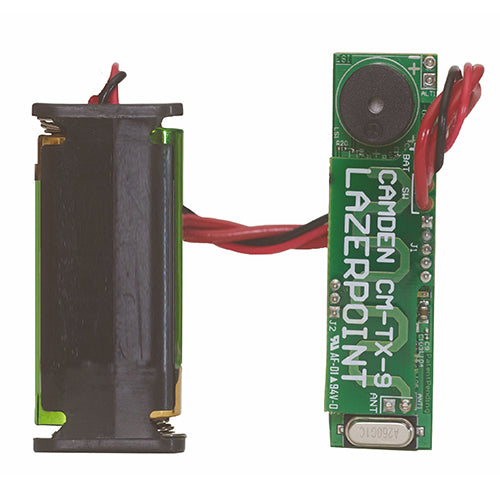

The Camden TX-9 wall switch transmitter is designed to mount behind a switch in a wall-box, post, or other suitable enclosure. Double sided tape is used to attach the circuit board and battery holder securely to the enclosure. Even though the circuit board is conformal coated, care shouldbe taken to ensure the transmitter does not get wet.
Key Features
- Ultra compact switch transmitter fits anywhere, including jamb box
Specifications
Specifications
Specifications
| UPC | 670454161987 |
|---|---|
| Also known as | CMTX9, CM-TX9 |
| Wireless Frequency | 905.25 / 915.25 / 925.25 MHz. Spread Spectrum |
| Codes | 1 Million Unique (20 Bit) Codes |
| Power/Voltage | (2) AAA alkaline batteries (supplied) |
| Battery Life | 500,000 cycles |
| Contact Rating | 3 Amps @ 30VDC |
| Current Draw | 2 mA |
| Temp Range | -40F to 185F (-40C to +85C) |
