Brand: Camden Door Controls
|
SKU:
CS514507
Camden Door Controls CM7436 | 36" Column™ Push Plate Switch, Anodized Aluminum Finish. Option For Dark Bronze Finish
Regular price
$310.78
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CM7436 | 36" Column™ Push Plate Switch, A...
Regular price
$310.78
Unit price
Brand: Camden Door Controls
|
SKU:
CS514507
Regular price
$310.78
Unit price
Shipping calculated at checkout.
Description
Description

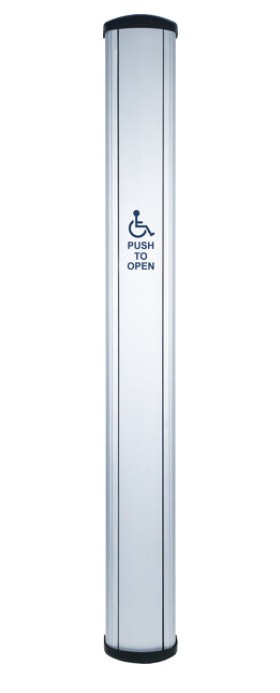

Camden Door Controls CM7436 | 36" Column™ Push Plate Switch, Anodized Aluminum Finish. Option For Dark Bronze Finish
CM-74 & CM-75 Series Column™ switches offer greater user convenience and lower installation costs by providing a single activation device in place of two high/low switches, as required by a growing number of building codes across North America. These Column™ switches feature solid aluminum or stainless steel construction and are available in a range of finishes.
Camden Door Controls - CM7436 - Features
- Low profile contoured design with easy activation from side angles
- Meets or exceeds California building code, section 1117B.6 requirements
- (2) Fully redundant SPDT, 15 Amp. UL listed switches
- Lazerpoint™ wireless compatible with provision for 'snap-in' battery powered transmitter
- Adjustable leveling screws for easy installation on uneven walls
- No internal wires exposed to moving parts
Specifications
Specifications
Camden Door Controls - CM7436 - Specifications
| Dimensions | 42.5"L x 5.5"W x 3"H |
|---|---|
| Weight | 6.50lbs. |
| UPC | 670454219947 |
| Amp Rating | 15a |
| Button Text | Wheelchair And "Push To Open" |
| Circuit State | Double Throw (Select No Or Nc) |
| Finish | Us28 Satin Anodized Aluminum |
| Mounting | Narrow Stile/mullion |
| Product Type | Pushbutton |
| Switch State | Momentary |
| Switch Type | Single-pole, Double-throw |
| UNSPSC CODE | 46171500 |
