Brand: Camden Door Controls
|
SKU:
CS510434

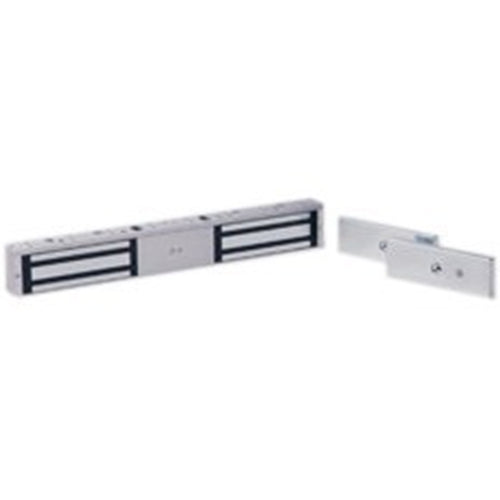

Camden Door Controls CX-92S-12TDS | Double Door Magnetic Lock, 1200lbs, Surface Mount, Adjustable Timer, Door Status Switch, Lock Sensor/Relay, LED
Regular price
$459.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CX-92S-12TDS | Double Door Magnetic Lock, 1200...
Regular price
$459.74
Unit price
Brand: Camden Door Controls
|
SKU:
CS510434
Regular price
$459.74
Unit price
Shipping calculated at checkout.
Description
Description
Camden CX-92S12TDS double door magnetic lock offers the best performance and value. The lock has a 1200lb. holding force and equipped built-in 'TDS' module, that provides an adjustable timer, lock sensor, door status switch, relay and LED.
Key Features
- 1200 and 600 lbs. models are UL and ULC listed
- Weather and vandal resistant construction proven over thousands of installations
- Compatible with all access/egress systems
- Field selectable 12/24V DC operation
- On board MOV power surge protection prevents damage to mag lock
- A wide range of mounting brackets and spacers available
- Lifetime Warranty
Specifications
Specifications
Specifications
| UPC | 670454155580 |
|---|---|
| Also known as | CX92S12TDS, CM-CX92S12TD |
| Voltage | 12/24V DC |
| Current Draw | 2 x 500mA@12V DC, 2 x 250mA@24V DC |
| Temp Range | 5F to 122F (-15C to 50C) |
| Contact Rating | TDS Models Only |
| Bond Sensor | 1A@30V DC |
| Door Status Switch | 0.5A@30V AC/DC |
| Time Delay | 0 to 30 seconds |
| Dimensions | 21" x 2 7/8" x 1 7/8" (533mm x 73mm x 48mm) |
| Armature Plate | 2 x 7 15/16" x 3" x 5/8" 2 x (202mm x 76mm x 16mm) |
