Brand: Camden Door Controls
|
SKU:
CS515273

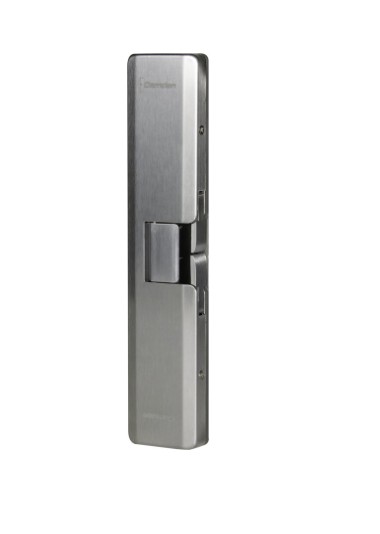

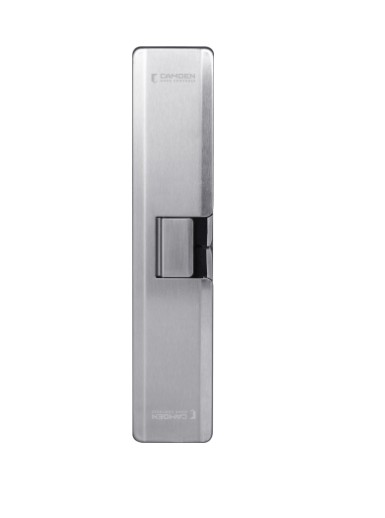

Camden Door Controls CX-EPD-1289L | 3/4" Surface Mount Preload RIM Strike
Regular price
$390.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CX-EPD-1289L | 3/4" Surface Mount Preload...
Regular price
$390.14
Unit price
Brand: Camden Door Controls
|
SKU:
CS515273
Regular price
$390.14
Unit price
Shipping calculated at checkout.
Description
Description
Camden Door Controls CX-EPD-1289L | 3/4" Surface Mount Preload RIM Strike
Camden introduces the first surface mount RIM strike with preload in the security industry. CX-EPD1289L (3/4") grade 1 surface mount RIM strike, with latch monitoring, also offers a 'Universal' strike design that delivers unparalleled application flexibility, with both UL security and fire listings.
Camden Door Controls - CX-EPD-1289L - Features
- No Cut surface mount RIM strike for Pullman latches
- Operates with up to 15 lbs. of preload pressure
- Universal design with selectable:
- 12/24V, AC/DC operation & Fail Safe/Fail Secure operation
- 3/4" latch projection
- Latches operate independently of each other
- Metal mounting jig included for easy installation
- Patented design
- Heavy duty stainless steel construction
- Horizontal adjustment, spacer plate available
- Removable latch monitoring switch included
- Non-handed, left or right
- 5 year warranty
Specifications
Specifications
Camden Door Controls - CX-EPD-1289L - Specifications
| Latch Projection: | 3/4" |
|---|---|
| Voltage: | 12/24V AC/DC |
| Current Draw: | 560mA @12V DC |
| Static Strength: | 1,500 lbs. (UL Verified) |
| Preload: | 15 lbs. |
| Dynamic Strength: | 70 ft-lbs. |
| Endurance: | 1,000,000 Cycles (Factory Tested) |
| Fire Rating: | UL10C/CAN4-S104 3hrs. |
| Mode: | Field Selectable Fail Safe or Fail Secure |
| Operation: | AC Buzz, DC Silent |
| Duty: | Continuous |
| Latch Monitor: | SPDT, 100mA @24V DC, Resistive |
| Dimensions: | 9-1/8"L x 1-7/8"W x 3/4"D |
| UNSPSC Code | 31162407 |
| Locking State | Selectable Fs Or Fse |
| Max Latch Length - Inch | Maximum 3/4 Inch Throw |
| Mounting | For Centerline Installations |
| Product Type | For Use With Cylindrical Lock |
| Pull Strength - Lbs | 1000 - 1500 Lbs. |
| Sales Category | Electric Strike |
| Switches | Latchbolt Monitor |
| Voltage And Duty Cont | Selectable 12/24v Dc |
Camden Door Controls - CX-EPD-1289L - Videos
| Camden Door Controls CX-EPD-1289L Video 1 | Click to View |
|---|---|
| Camden Door Controls CX-EPD-1289L Video 2 | Click to View |
