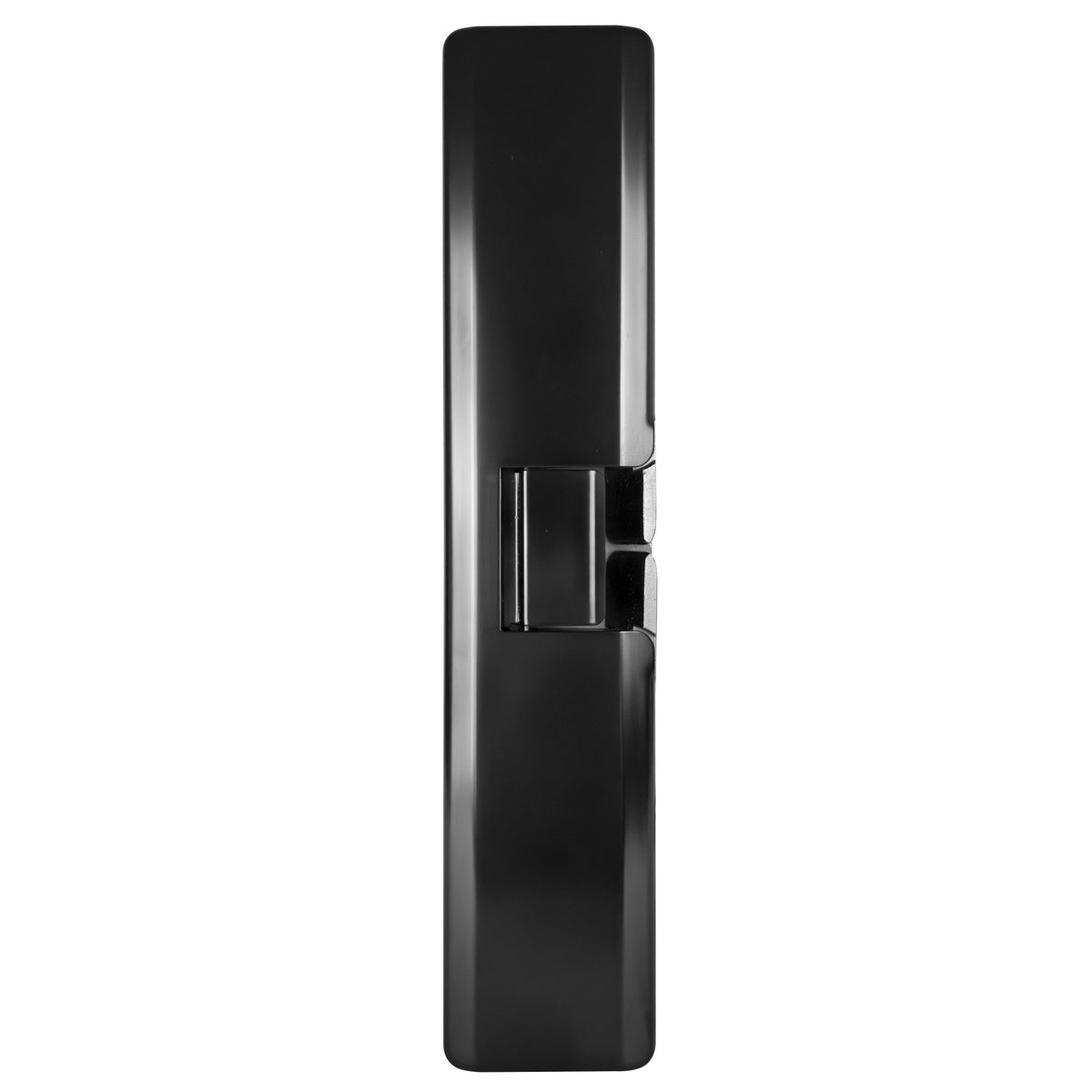

Camden Door Controls CX-EPD1289L-BK | 3/4" Surface Mount RIM Door Strike, 12/24V AC/DC, Black Finish
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CX-EPD1289L-BK | 3/4" Surface Mount RIM D...
Description
Description
Camden introduces the first surface mount RIM strike with preload in the security industry. CX-EPD1289L (3/4") grade 1 surface mount RIM strike, with latch monitoring, also offers a 'Universal' strike design that delivers unparalleled application flexibility, with both UL security and fire listings.
This award-winning strike is now available in stainless steel and has an exclusive, all-black finish.
Preload is pressure exerted on the keeper of a strike that causes the mechanism to fail to release. Whether caused by air pressure, a misaligned door, or inexact installation, CX-EPD1289L RIM strikes are designed to operate where other strikes fail!
Camden Door Controls - CX-EPD1289L-BK - Features
- €˜No Cut' surface mount RIM strike for Pullman latches
- Operates with up to 15 lbs. of preload pressure
- 'Universal' design with selectable: 12/24V, AC/DC operation & Fail Safe/Fail Secure operation
- 3/4" latch projection
- Latches operate independently of each other
- Metal mounting jig included for easy installation
- Patented design
- Heavy duty stainless steel construction
- Horizontal adjustment, spacer plate available
- Removable latch monitoring switch included
- Non-handed, left or right
Specifications
Specifications
Camden Door Controls - CX-EPD1289L-BK - Product Categories
- Security
- Electrified Door Hardware
- Electric Strike
Camden Door Controls - CX-EPD1289L-BK - Specifications
| ANSI Grade | Grade 2 |
|---|---|
| Finish | Us19 Flat Black Coated |
| Locking State | Selectable Fs Or Fse |
| Sales Category | Electric Strike |
| Frame Material | Aluminum, Hollow Metal, Or Wood |
| Product Type | For Use With Surface Mounted Locks |
| Mounting | For Surface Mt Installations |
| Max Latch Length - Inch | Maximum 3/4 Inch Throw |
| Pull Strength - Lbs | 1000 - 1500 Lbs. |
| Switches | Latchbolt Monitor |
| UL | Ul 3-Hour Fire And Burglary Resistance |
| Voltage and Duty CONT | Selectable 12/24V Dc |
| Warranty | 5 Year Limited |
| UNSPSC Code | 31162407 |
