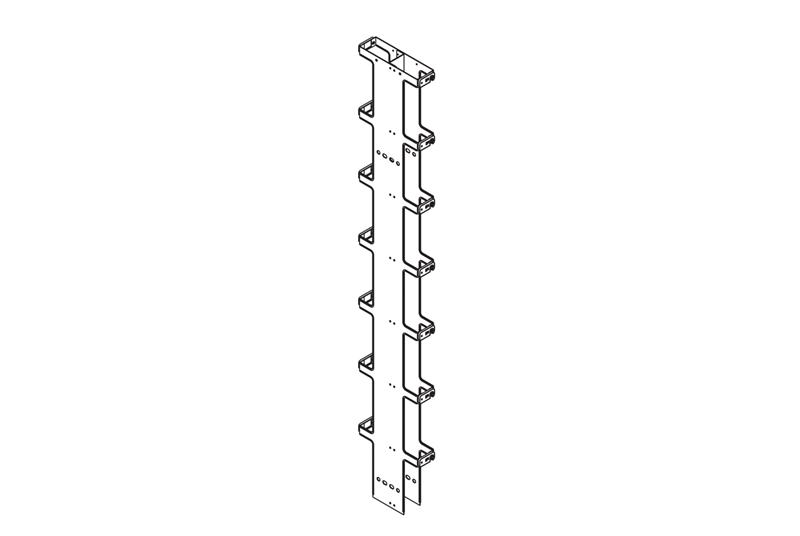

Chatsworth 12096-E03 | Double-Sided Narrow Vertical Cabling Section

Chatsworth - 12096-E03 - Features

• Double-Sided Narrow Vertical Cabling Section Overview
• Provides double-sided 3.65” (92.7 mm) cable run between equipment racks.?Oval ports measuring 1.38” x 2.25” (35.1 mm x 51.2 mm) are spaced at 11.62” (295.1 mm) intervals along center separator for convenient cable and wiring pass-through. Vertical slots secure optional Saf-T-Grip
• Cable Management Straps for neatly bundled cables.
• Key Features and Benefits
• Bolts to CPI Standard Rack, Universal Rack, QuadraRack 4-Post Frame and QuadraRack Server Frame
• Includes formed cabling section, lockable cabling latches spaced 12” (300 mm) apart, protective edge guards and mounting hardware
• 3.65”W x 12.75”D (92.7 mm x 323.9 mm); double-sided cable trough
• 1.38” x 2.25” (35.1 mm x 57.2 mm) oval pass-through ports every 11.62” (295.1 mm)
• 9’ (2.7 m) version consists of 7’ (2.1 m) section with a 2’ (0.6 m) extension
• Mounting hardware included
