Brand: Chatsworth Products Inc (Cpi) | SKU: 10003102

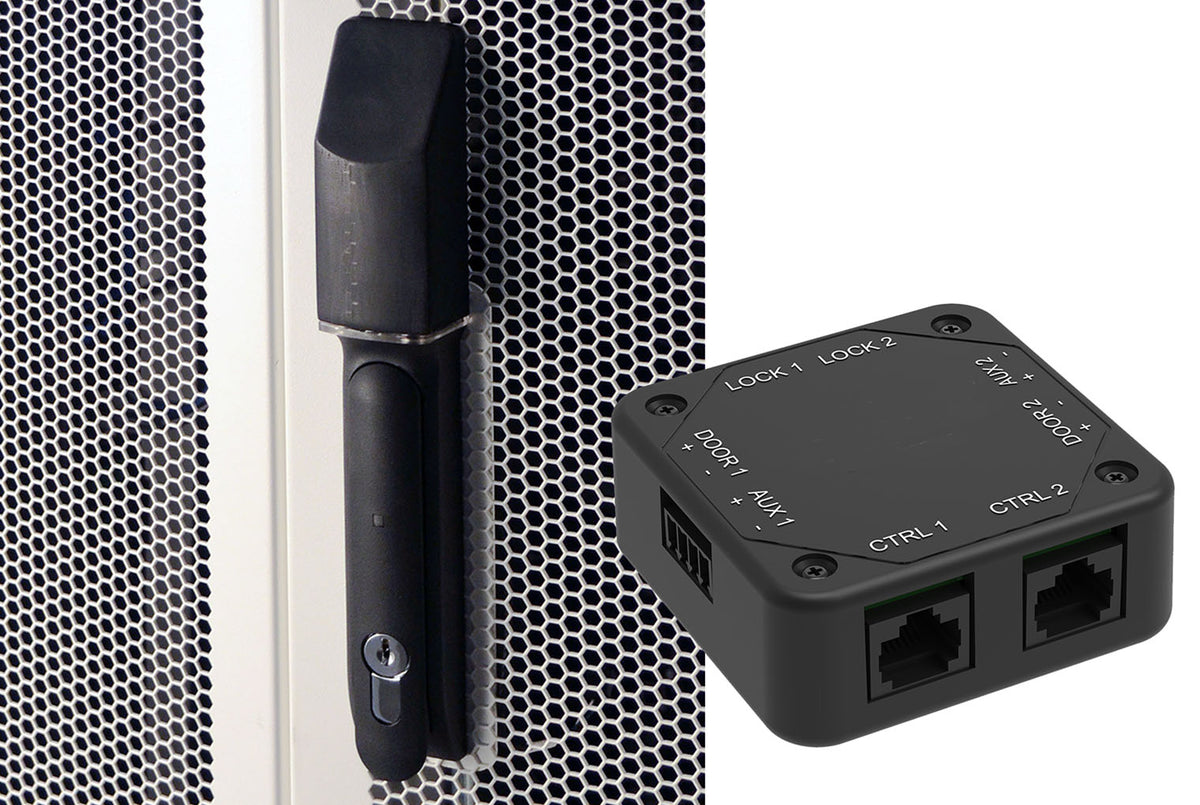

Chatsworth 14668-001 | Security System RFID Electronic Lock Kit

$1,489.90

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Chatsworth 14668-001 | Security System RFID Electronic Lock Kit; For GlobalFrame and TeraFrame cabinet systems; Includes front and rear door locks; Security System Integration (SSI) Kit with Weigand interface; 3 Door switches; 2 wiring harnesses; 2 Mechanical override keys

Security System RFID Electronic Lock Kit features

Security System Integration Kit for Wiegand-based security panels
Supports connection of two separate channels for independent system control
Front and rear swinghandles
3 door sensors (front and rear doors)
2 wiring harnesses (for front and rear connection)
2 mechanical override keys

Specifications

eConnect RFID Electronic Lock Kit includes

Integration with eConnect PDU and environmental monitoring into a single platform and web interface
Front and rear swinghandles
3 door sensors (front and rear doors)
2 wiring harnesses (for front and rear connection)
2 mechanical override keys

Networked RFID Electronic Lock Kit includes

Controller module with Gigabit Ethernet port & built-in web interface
Secure Array IP Consolidation for up to 16 cabinets
Capability to integrate with USB Temperature and Humidity Sensor
Front and rear swinghandles
3 door sensors (front and rear doors)
2 wiring harnesses (for front and rear connection)
2 mechanical override keys

Product Details

Type	Security System RFID Electronic Lock Kit

Product Information

RFID Electronic Lock Kit Overview	The Electronic Lock Kit solution can be preinstalled in CPI GlobalFrame and TeraFrame cabinets and features swinghandles with integrated dual-frequency card reader technology. Audit trail capability allows for enhanced regulatory compliance.
Integrated RFID Card Reader	Separate lock options recognize existing employee 125 kHz or 13.56 MHz RFID cards, including HID, iClass, MIFARE and DESFire technologies
Future-proof Design	Modular reader allows the use of the same swing-handle as card technologies evolve
Flexible Management	Multiple methods of integration: through eConnect PDUs, networked controller or building security access control system
Regulatory Compliance	Allows audit trail to be maintained for every access attempt within DCIM software or access control systems in order to comply with HIPAA, PCI DSS, GDPR, FISMA, Saas SOC 2, HITECH and more
Quick Deployment	Locks can be factory-preinstalled into CPI TeraFrame and GlobalFrame cabinets
eConnect Integration	Eliminates the need for a separate IP address or a separate source of power for the lock. Saves significant deployment costs normally associated with wiring the locks to security panels
Remote Access Control	Ability to remotely open/close doors allows administrators to provide access to contractors without badges
Centralized Authentication	Ability to use the permissions set within RADIUS server to provide higher levels of security
