Chatsworth 39080-C01 | Bottom Panel for GF-Series GlobalFrame Gen 2 Cabinet

Chatsworth - 39080-C01 - Features

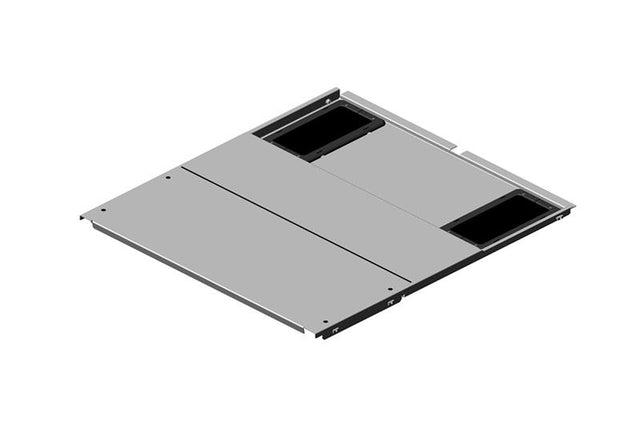

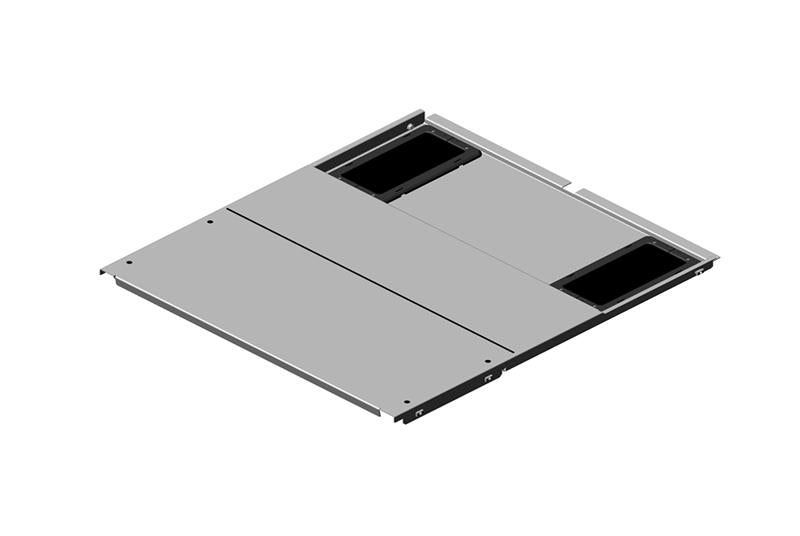

• Bottom Panel for GF-Series GlobalFrame Gen 2 Cabinet Overview
• Bottom Panel seals the bottom of the Bottom Panel for GF-Series GlobalFrame Gen 2 Cabinets to contain and control airflow in cabinets that are elevated on casters or leveling feet.
• Key Features and Benefits
• Solid panel with two brush sealed cable openings
• Two-piece design for easy installation, adjusts in depth to fit cabinet
• Two cable openings, in back corners, are 4.5”W x 9”D (114 mm x 228 mm) without cover, sized for large power plugs
• Brush covers over cable openings, protects cables as they pass through bottom panel, provides a 3.9”W x 8.8”D (99 mm x 223 mm) pass through area for cables
• Brush cover is two halves that snap together around cables and forms a seal
• Used in combination with Air Dam and Vertical Exhaust Duct
• Includes: Bottom panel with brush covers, installation brackets and hardware
• Material: Steel bottom panel; brushes are plastic
• Finish: Black or Glacier White; brushes are black
• Select part number to match the width and color of the cabinet
• Fits cabinet frames that are 39.4”D (1000 mm) and deeper
