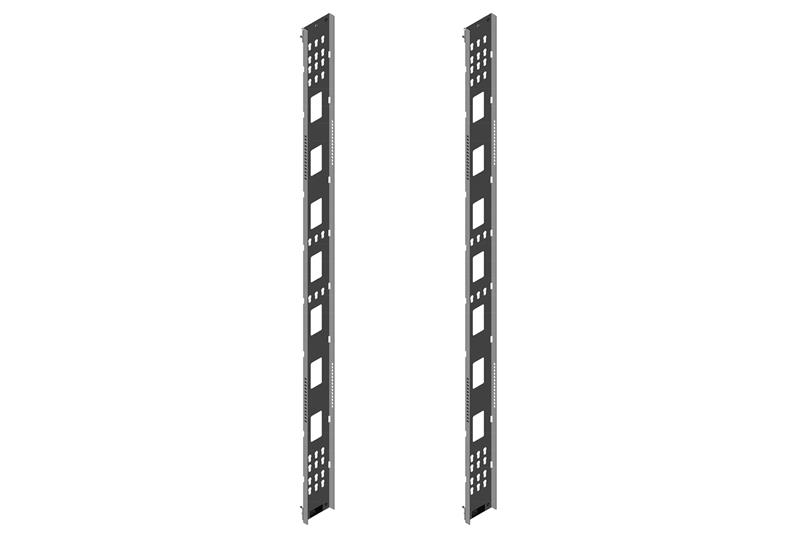

Chatsworth 39086-E05 | Full Height PDU Bracket

Chatsworth - 39086-E05 - Features

• Full Height PDU Bracket Overview
• Full Height Dual PDU Bracket supports two vertical PDUs side-by-side and has multiple slots for CPI Saf-T-Grip Straps or tie wraps to secure cords to the bracket. Two sizes available. For use with GF-Series GlobalFrame Gen 2 or F-Series TeraFrame Gen 3 Cabinets.
• Key Features and Benefits
• Attaches to the frame, adjusts in depth independent of the mounting rails
• Available in two widths; Dual and Wide
• Dual bracket is 4.8”W (121 mm) and supports two PDUs up to 2.2”W (51 mm) side-by-side
• Dual bracket supports most CPI eConnect PDUs and power strips side-by-side
• Wide bracket is 5.8”W (147 mm) and supports two PDUs up to 2.7”W (69 mm) side-by-side
• Wide bracket is required to mount two 6-bracker eConnect PDUs (series P/N PX-3XXXX) side-by-side
• Tool-less mounting on 28” (711 mm), 61.25” (1556 mm) or 64.75” (1645 mm) centers
• Includes: brackets, installation hardware, order Saf-T-Grips or cable ties separately
• Material: Steel; Finish: Black or Glacier White
