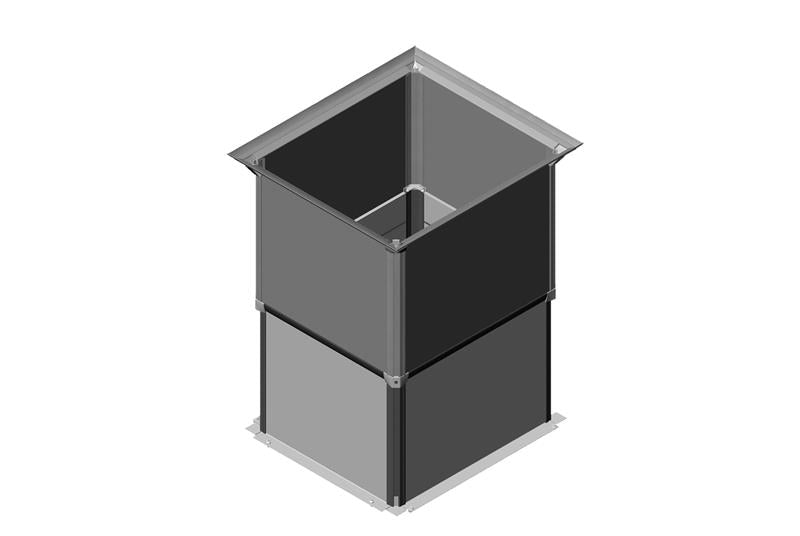

Chatsworth 39177-E03 | Vertical Exhaust Duct, Cable Port, 27.6'' (700 mm) W, 14"H-20''H (356 mm-508 mm), Glacier White

Key Features

• Upgrades installed cabinet in traditional hot aisle/cold aisle environment from front-to-rear airflow to front-to-top airflow
• Used with Solid Rear Door, Bottom Panel, Air Dam, Snap-In Filler Panels and Air Director to completely contain hot exhaust air, and remove it from the cabinet and room
• Fits cabinets that are 41.3”D (1050 mm) or deeper that have a two-piece Server top panel
• Two-piece duct adjusts in height to span the distance between the top of the cabinet and the overhead drop ceiling, available in three sizes (see description in order table)
• Features easy height adjustment, flexible seal at the top to accommodate variations in the drop ceiling
• Includes a brush sealed cable opening on the back of the duct to allow power cords to enter the back of the cabinet when the duct is installed
• Includes: Vertical Exhaust Duct and installation hardware
• Material: Steel duct panels; top seal and duct corners are plastic
• Finish: Black or Glacier White; seal and corners are black
