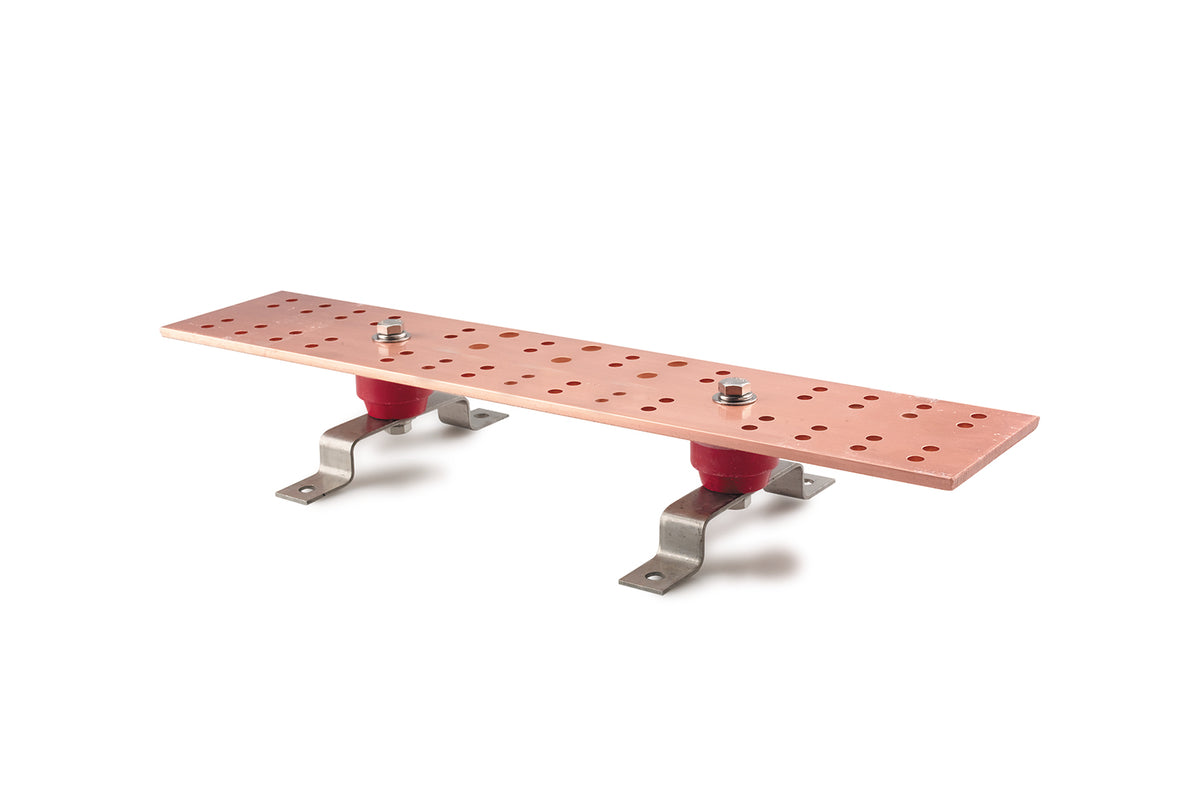

Chatsworth 40153-020 | PBB Pattern Busbar
Regular price
$528.77
Unit price
Brand: Chatsworth Products Inc (Cpi)
|
SKU:
273198
Regular price
$528.77
Unit price
Description
Description
Chatsworth 40153-020 | PBB Pattern Busbar; 4"H x 20"W x 1/4"D (50 mm x 510 mm x 6.4 mm); Copper
Key Features and Benefits
- Mounting brackets are manufactured from high-quality 300 series stainless steel with 3/8” (9.53 mm) diameter mounting holes spaced 5.75” (146.1 mm) apart
- Busbars mount on the wall, floor or ceiling
- Ships preassembled
- Sold individually
- UL Listed, File E236184, Category KDER (US), KDER7 (Canada)
- Busbar assemblies with lug kits also available
- Other configurations available on request
Specifications
Specifications
Product Details
| Width | 20" (510 mm) |
|---|
Product Information
| BICSI & ANSI/TIA Primary Bonding Busbars Overview | ICT Primary Bonding Busbar (PBB) provides a central bond attachment point for ICT bonding backbones, equipment and the building’s ground electrode system.Hole patterns on Busbars accommodate two-hole lugs per the recommendation of ANSI/BICSI N3-20 and ANSI/TIA-607 standards. Insulators electrically isolate Busbars from the wall or other mounting surfaces, thereby controlling the current path. |
|---|
