Brand: Chatsworth Products Inc (Cpi) | SKU: 10122737

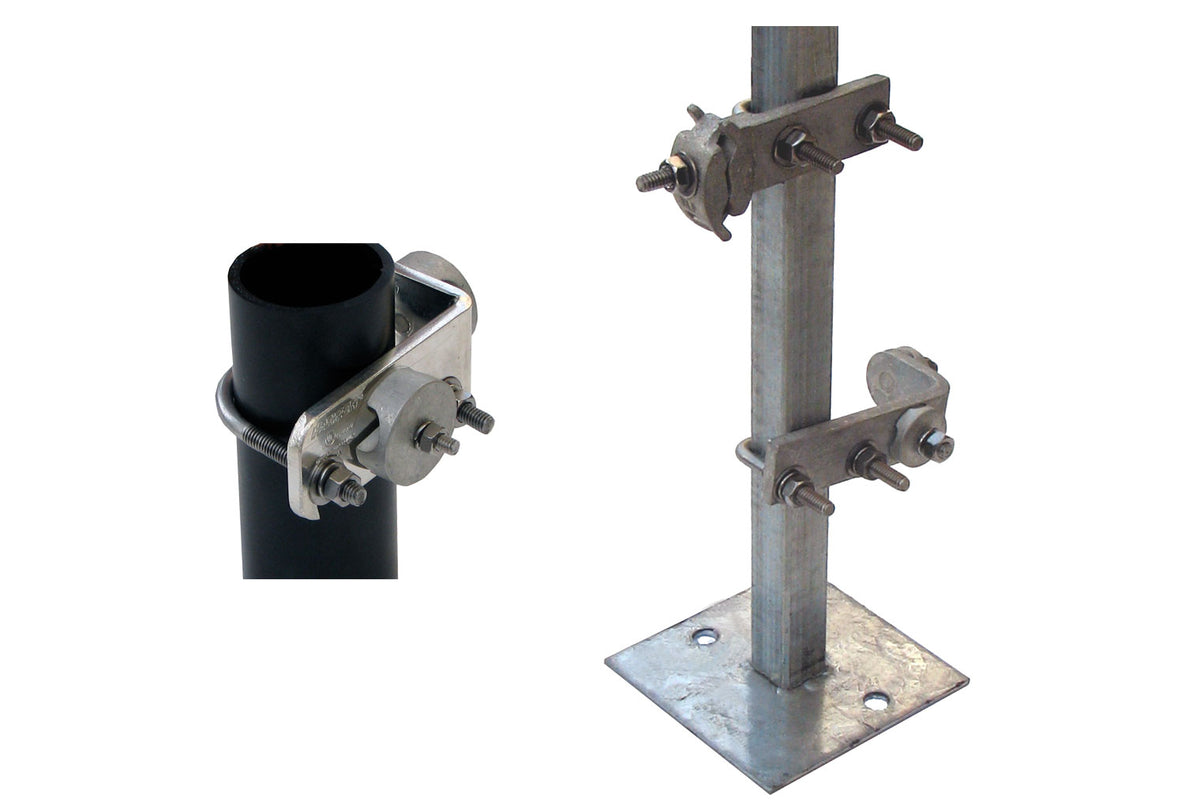

Chatsworth 40169-003 | Pedestal Clamp with Bonding Connector, For use with Square or Round, 1-1/8" (28 mm) OD Pedestal Style

$142.78

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Support bonding conductors from round or square raised floor pedestals using the Pedestal Clamp with Bonding Connector. The connector provides a bonding connection for the pedestal and supports up to four bonding conductors (wires) from the pedestal. Use to create a signal reference grid under the raised access floor using #6 AWG or 2/0 bare round conductor. Select the Pedestal Clamp with Bonding Connector to match the style and size of the pedestal and size of the conductor. See the order table.

Key Features

Use Cross Connectors to create signal reference grid intersections; support up to (4) conductors, 2 per side, size #6 AWG or 2/0
Use Straight Connectors to support the signal reference grid in-between intersections; support 1 or 2 conductors on one side of the pedestal only, size #6 AWG or 2/0
Manufactured from electrotin plated copper or bronze (P/N 40169-003) with stainless steel installation hardware
PNs 40169-001 and 40169-002 are UL® Listed, File E236184, Category KDER (US), KDER7 (Canada) - Bonding and Grounding Equipment

Specifications

Pedestal Style	Straight Connector with Square or Round Style Pedestal

Documents and Downloads

Chatsworth 40169-003 Cut Sheet
