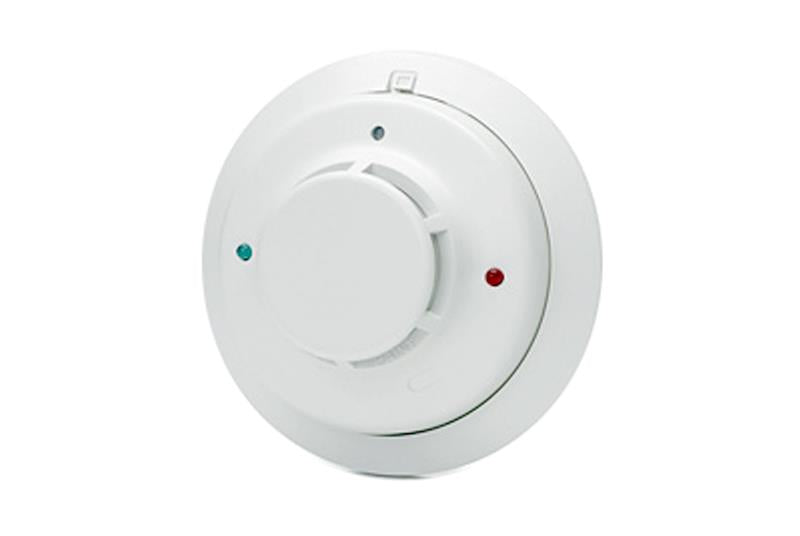

Chatsworth 60113-002 | Smoke Detector for use with RIM-750 System
Regular price
$214.25
Unit price
Brand: Chatsworth Products Inc (Cpi)
|
SKU:
589885
Regular price
$214.25
Unit price
Description
Description
Chatsworth 60113-002 | Smoke Detector for use with RIM-750 System; each
Key Features and Benefits
- Input Power: 12/24V non-polarized (nominal); 8.5V (minimum); 35V (maximum)
- Maximum Ripple Voltage: 30% peak-to-peak of applied voltage
- Standby Current: 50?A maximum average
- Sensitivity: 2.5%/ft nominal
- Alarm Contact Ratings: 0.5A @ 30V AC/DC
- Maximum Alarm Current: 20mA @ 12V, 23mA @ 24V
- Operating Temperature Range: 32°F to 120°F (0°C to 49°C)
- Operating Humidity Range: 0 to 95% RH, non-condensing
- LED indicators: Red and Green indicate power up, normal, out of sensitivity, and alarm conditions
- Mounting: 3.5” octagonal back box, 4” octagonal back box, single-gang back box, 4” square back box with a plaster ring, direct mount to ceiling/wall
- Input Terminals: 14 to 22 AWG
- Size: 2.0”H x 5.3” diameter (51 mm x 127 mm diameter)
- Weight: 6.3 oz (178 g)
- Material: Housing, plastic
- Color: White
Specifications
Specifications
Product Information
| Smoke Detector for RIM-750 Overview | Surface-mount, wired, photoelectric smoke detector with two piece construction that allows pre-wiring of the installation base with plug-in head. The Smoke Detector includes an external power supply and attaches to one of the eight digital inputs on the RIM-750. |
|---|
