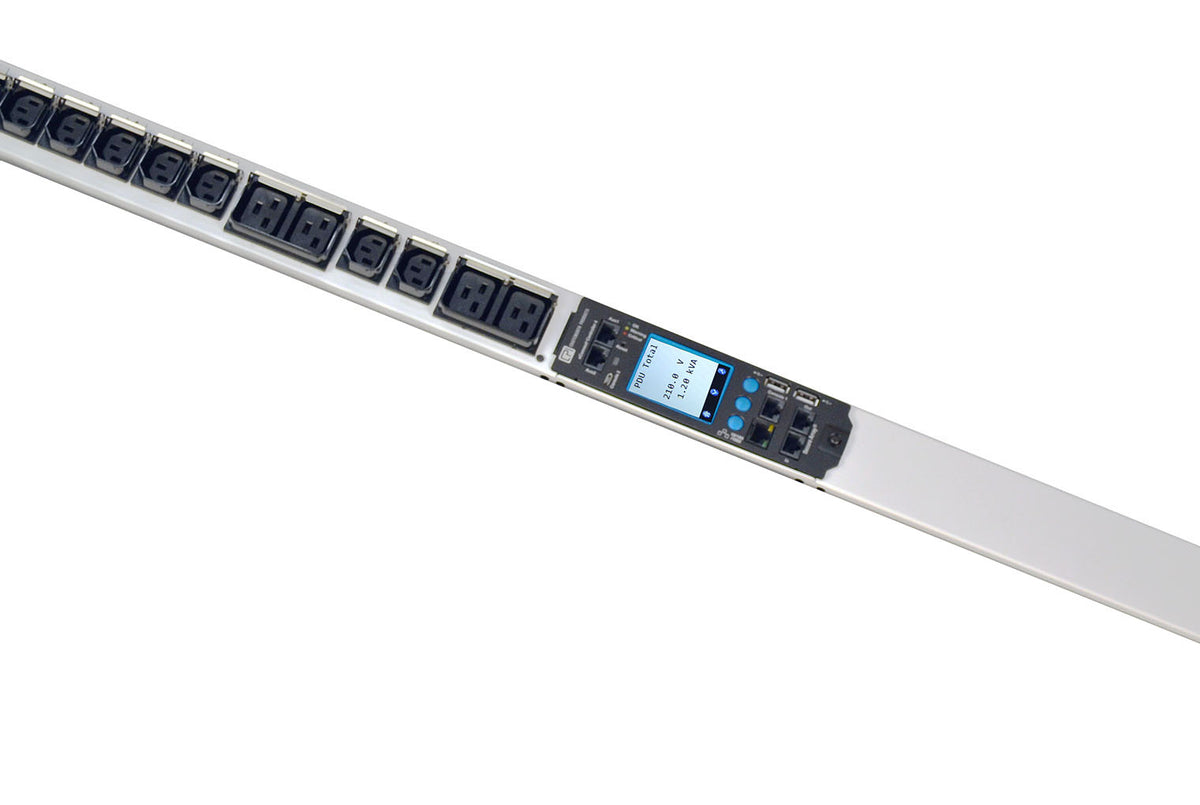

Chatsworth EA-4026-E | Monitored Pro eConnect PDU
Regular price
$3,105.53
Unit price
Brand: Chatsworth Products Inc (Cpi)
|
SKU:
10003026
Regular price
$3,105.53
Unit price
Description
Description
Chatsworth EA-4026-E | Monitored Pro eConnect PDU; Glacier White; Vertical; For 42U & Higher Cabinets; 120/208V 3P/30A/L21-30 Input; (18) C13+(6) C19 Outlets + (3) 5-20 Convenience Outlets; 8.6kW; 149°F (65°C); Secure Array IP Consolidation; Phase-Balance Locking Outlets; Field-Replaceable Controller; +/-1% Metering Accuracy; LCD Display; 10/100/1000MB Port; Onboard GUI; SNMPv1/v2/v3; LDAP & Radius Integration; HTTPs; Environmental Sensor and Electronic Lock Integration Ready; 100% Rated Hydraulic Magnetic Breakers; Toolless Mounting
Specifications
Specifications
Product Details
| Plug | NEMA L21-30P |
|---|---|
| Outlets | (18) C13 + (6) C19 Outlets + (3) 5-20 Convenience Outlets |
| Volts | 120/208V |
Product Information
| Monitored Pro eConnect PDU Overview | Monitored Pro eConnect PDUs provide remote power monitoring down to the outlet level, making it possible to obtain power consumption for each piece of equipment. |
|---|---|
| Reduced Networking Costs and Complexity | Secure Array allows the use of a single IP address for up to 32 connected PDUs and all attached sensors and locks. Second IP address for the entire array provides failover capability |
| Resistance to High Temperature | Market-leading temperature ratings of up to 149°F (65°C) ensures reliability when mounted toward hot aisles |
| Simplified Load Balancing | Phase-balance outlets on three-phase models ensure equal loading across all phases; Allows use of shorter equipment power cords for better cable and airflow management |
| No Accidental Disconnections | Patent-pending, low-profile locking outlets prevent accidental disconnections without requiring special cords |
| Easy Identification of Failover Unit | Redundancy Pack includes 2 PDUs (one in Black and one in Glacier White) for easy identification of the primary and secondary unit |
| Electronic Lock Integration | Patented technology seamlessly integrates PDU, environmental sensors and electronic locks into a single hardware and software solution |
| Gigabit Ethernet | Ensures compatibility with enterprise routers and switches |
| Latest UL Compliance | Meets UL and IEC 62368 for compliance with new listing requirements for North America and the European Union |
| Cabinet Preinstallation | Complete ecosystem ships ready for IT equipment installation |
