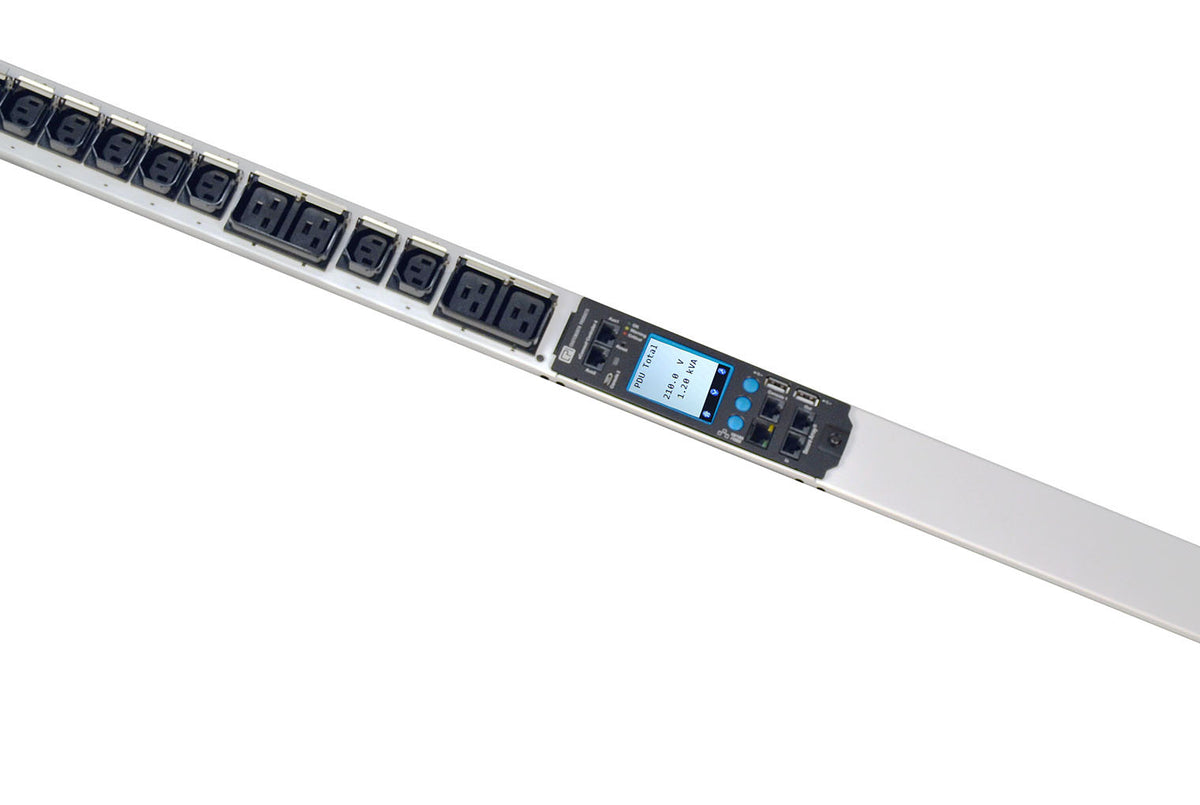

Chatsworth EA-5136-E | Switched eConnect PDU
Regular price
$3,280.60
Unit price
Brand: Chatsworth Products Inc (Cpi)
|
SKU:
10002940
Regular price
$3,280.60
Unit price
Description
Description
Chatsworth EA-5136-E | Switched eConnect PDU; Glacier White; Vertical; For 45U & Higher Cabinets; 208V 3P/50A/CS8365 Input; (36) C13 Outlets; 14.4kW; 149°F (65°C); Secure Array IP Consolidation; Phase-Balance Locking Outlets; Field-Replaceable Controller; +/-1% Metering Accuracy; LCD Display; 10/100/1000MB Port; Onboard GUI; SNMPv1/v2/v3; LDAP & Radius Integration; HTTPS; Environmental Sensor and Electronic Lock Integration Ready; 100% Rated Hydraulic Magnetic Breakers; Toolless Mounting
Specifications
Specifications
Product Details
| Plug | CS8365 |
|---|---|
| Outlets | (36) C13 |
| Volts | 208V |
Product Information
| Switched eConnect PDU Overview | Switched eConnect PDUs provide remote monitoring of power at the rack level and individual outlet control, making it possible to remotely turn power on or off at each outlet. |
|---|---|
| Reduced Networking Costs and Complexity | Secure Array allows the use of a single IP address for up to 48 connected PDUs (32 when electronic locks are integrated). Second IP address for the entire array provides failover capability |
| Resistance to High Temperature | Market-leading temperature ratings of up to 149°F (65°C) ensures reliability when mounted toward hot aisles |
| Simplified Load Balancing | Phase-balance outlets on three-phase models ensure equal loading across all phases; allows use of shorter equipment power cords for better cable and airflow management |
| No Accidental Disconnections | Patent-pending, low-profile locking outlets prevent accidental disconnections without requiring special cords |
| Easy Identification of Failover Unit | Redundancy Pack includes 2 PDUs (one in Black and one in Glacier White) for easy identification of the primary and secondary unit |
| Electronic Lock Integration | Patented technology seamlessly integrates PDU, environmental sensors and electronic locks into a single hardware and software solution |
| Gigabit Ethernet | Ensures compatibility with enterprise routers and switches |
| Latest UL Compliance | Meets UL and IEC 62368 for compliance with new listing requirements for North America and the European Union |
| Cabinet Preinstallation | Complete ecosystem ships ready for IT equipment integration. Saves deployment time and reduces packaging waste |
