Chatsworth EA-6027-E | Switched Pro eConnect PDU
Regular price
$3,723.58
Unit price
Brand: Chatsworth Products Inc (Cpi)
|
SKU:
10003134
Regular price
$3,723.58
Unit price
Description
Description

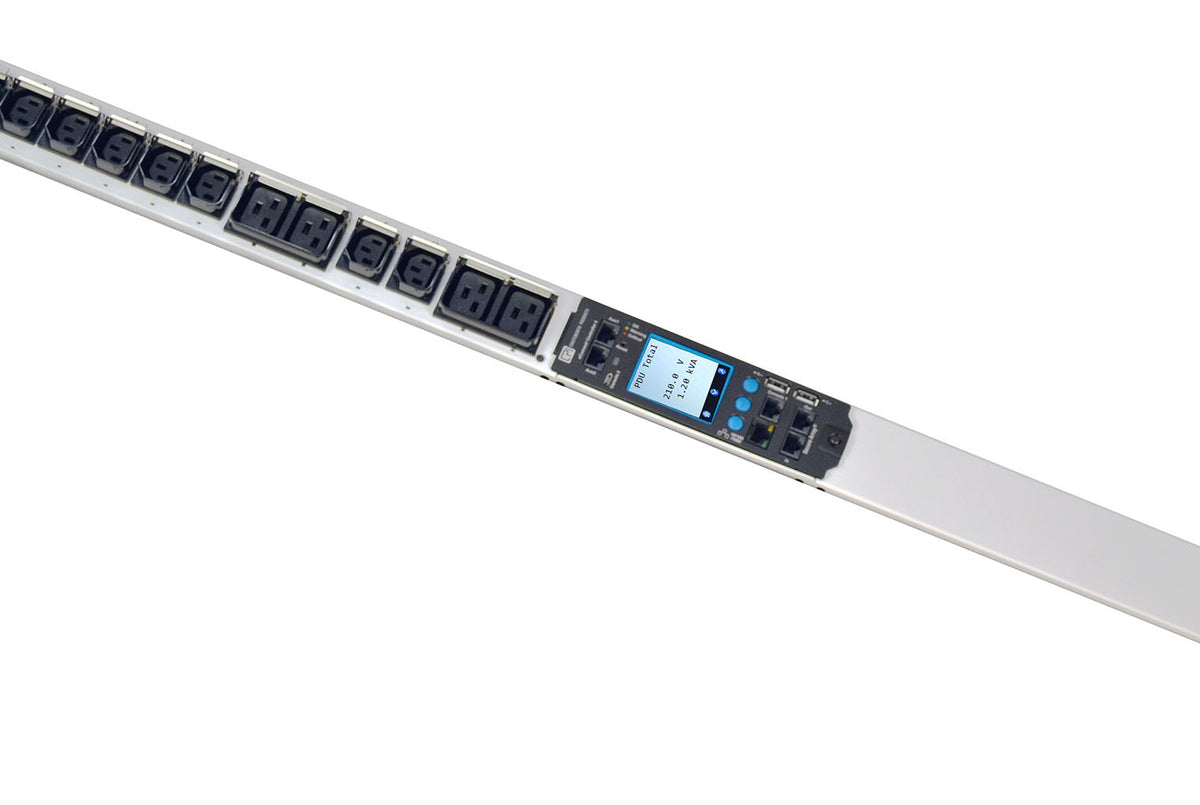

Chatsworth EA-6027-E | Switched Pro eConnect PDU; Glacier White; Vertical; For 42U & Higher Cabinets; 208V 3P/50A/CS8365 Input; (12) C13+(12) C19 Outlets; 14.4kW; 149°F (65°C); Secure Array IP Consolidation; Phase-Balance Locking Outlets; Field-Replaceable Controller; +/-1% Metering Accuracy; LCD Display; 10/100/1000MB Port; Onboard GUI; SNMPv1/v2/v3; LDAP & Radius Integration; HTTPs; Environmental Sensor and Electronic Lock Integration Ready; 100% Rated Hydraulic Magnetic Breakers; Toolless Mounting
Specifications
Specifications
Product Details
| Plug | CS8365 |
|---|---|
| Outlets | (12) C13 + (12) C19 |
| Volts | 208V |
Product Information
| Switched Pro eConnect PDU Overview | Switched Pro eConnect PDUs provide remote power monitoring and control for each outlet on the PDU, making it possible to remotely measure and cycle power for each piece of equipment attached to the PDU. |
|---|---|
| Reduced Networking Costs and Complexity | Secure Array allows the use of a single IP address for up to 32 connected PDUs and all attached sensors and locks. Second IP address for the entire array provides failover capability |
| Resistance to High Temperature | Market-leading temperature ratings of up to 149°F (65°C) ensures reliability when mounted toward hot aisles |
| Simplified Load Balancing | Phase-balance outlets on three-phase models ensure equal loading across all phases; Allows use of shorter equipment power cords for better cable and airflow management |
| No Accidental Disconnections | Patent-pending, low-profile locking outlets prevent accidental disconnections without requiring special cords |
| Easy Identification of Failover Unit | Redundancy Pack includes 2 PDUs (one in Black and one in Glacier White) for easy identification of the primary and secondary unit |
| Electronic Lock Integration | Patented technology seamlessly integrates PDU, environmental sensors and electronic locks into a single hardware and software solution |
| Gigabit Ethernet | Ensures compatibility with enterprise routers and switches |
| Latest UL Compliance | Meets UL and IEC 62368 for compliance with new listing requirements for North America and the European Union |
| Cabinet Preinstallation | Complete ecosystem ships ready for IT equipment installation |
