Description
Description

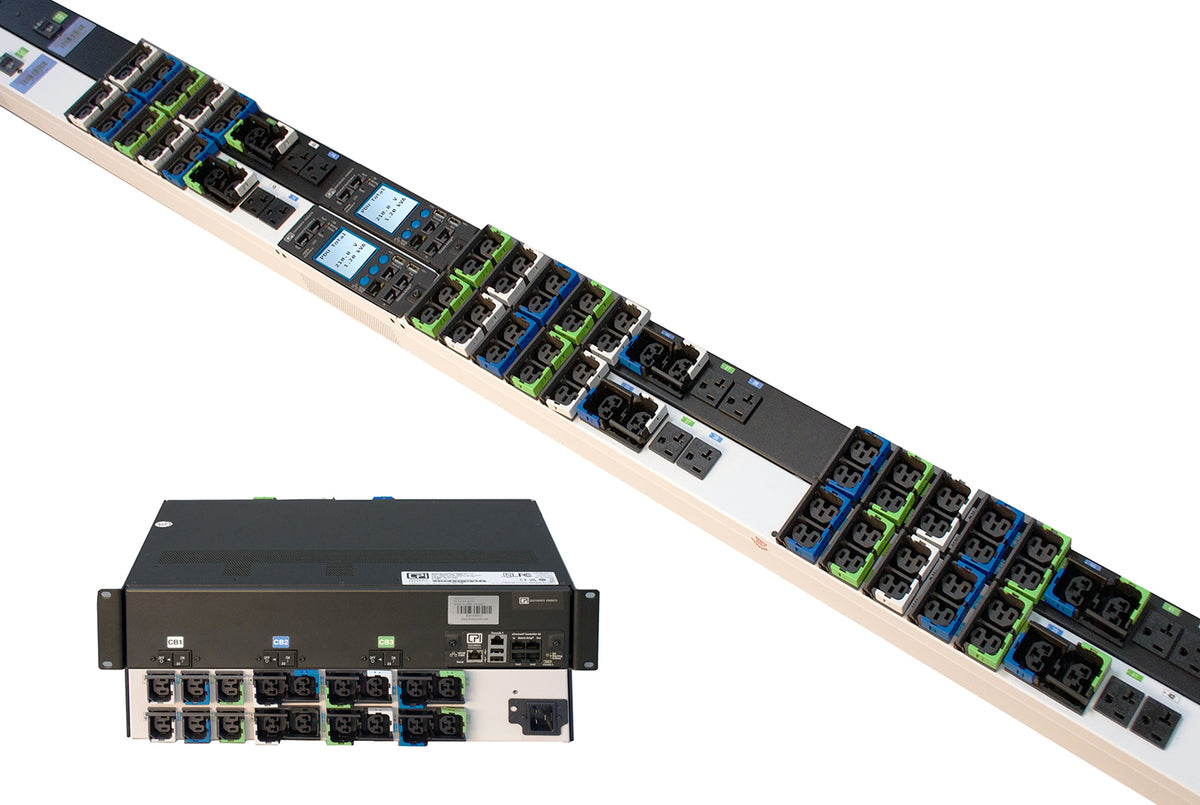

Monitored eConnect® PDUs provide remote power monitoring to the input and branch circuit level, making it possible to obtain and manage power consumption at the cabinet level.
Chatsworth Products Inc - EA-3014-C - Features
- Reduced Networking Costs and Complexity
- Secure Array® allows the use of a single IP address for up to 48 connected PDUs (32 when electronic locks are integrated). Second IP address for the entire array provides failover capability.
- Resistance to High Temperature
- Market-leading temperature ratings of up to 149°F (65°C) ensure reliability when mounted toward hot aisles.
- Simplified Load Balancing
- Phase-balance outlets on three-phase models ensure equal loading across all phases; allows use of shorter equipment power cords for better cable and airflow management.
- No Accidental Disconnections
- Patented, low-profile locking outlets prevent accidental disconnections without requiring special cords.
Specifications
Specifications
Chatsworth Products Inc - EA-3014-C - Specifications
| Plug | NEMA L21-30P |
|---|---|
| Outlets | (30) C13/C15 Locking + (6) C19 Locking + (6) 5-20 |
| Volts | 120/208V |
| Phase | Three-Phase |
| Input Current | 30A |
| kW Capacity | 8.6kW |
| Cabinet Compatibility | 42U or Higher |
| Color | Black |
| Height | 71.9" (1826 mm) 0U |
| Width | 2.2" (55 mm) |
| Depth | 2.3" (58 mm) |
| Country Of Origin | US |
| Material | Steel |
| BABA Compliant | No |
| Type | eConnect |
