Chatsworth ZA35-A1200-71 | ZetaFrame Cabinet System
Description
Description

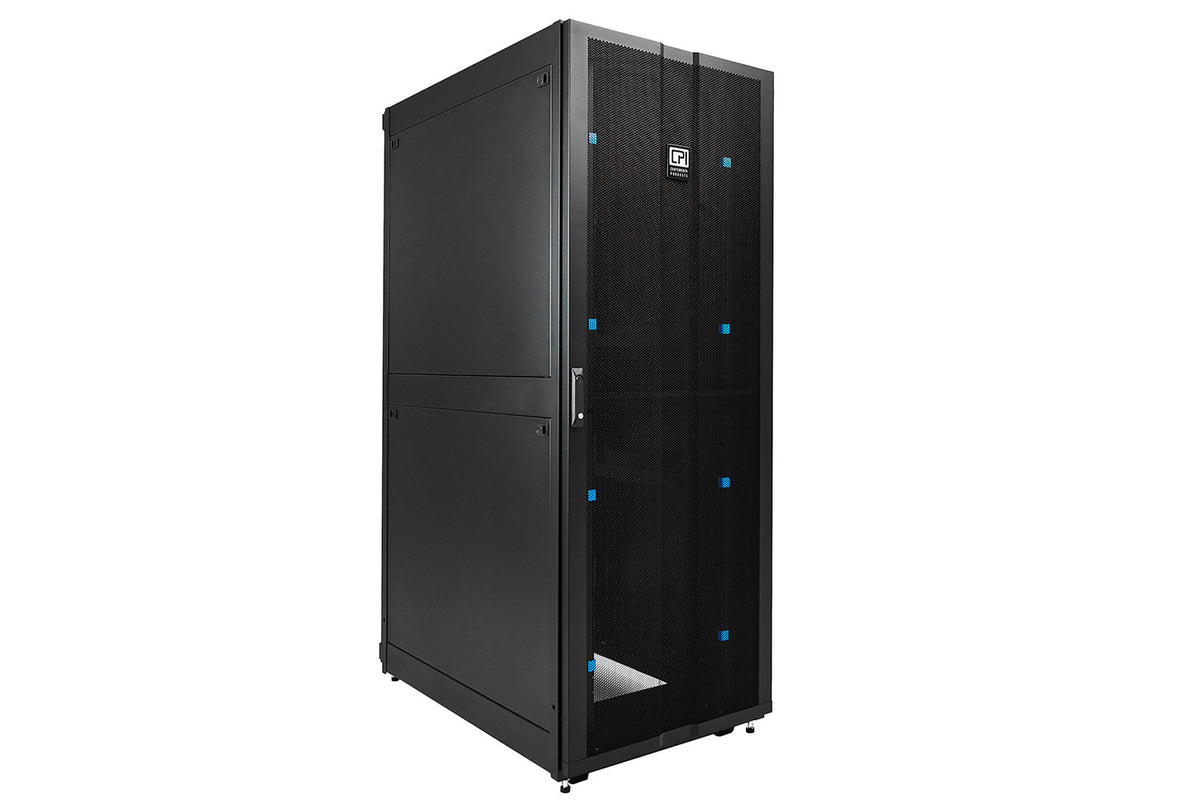

ZetaFrameCabinet; 79.4"H x 29.5"W x 47.2"D (2017 mm x 750 mm x 1200 mm); 42U; Perf Front Door; Double Perf Rear Door; Grommet Top Panel; 2 Side Panels; No Bottom Panel; No Air Dam; Standard Pallet; Black
The ZetaFrame Cabinet is a highly engineered data centre cabinet solution that delivers fast built-to-order configurability and industry-leading strength and scalability, regardless of the application. ZetaFrame Cabinet is a total, turnkey solution tha t integrates with power, cable and thermal management accessories to support next-generation compute. Secure and protect critical equipment in high-density environments with ZetaFrame Cabinet. Sturdy, deep design Supports power, cable and airflow management accessories 2,268 kg static load ratings and 1814 kg dynamic load rating Optimal space utilisation
Chatsworth - ZA35-A1200-71 - Features
- ZetaFrame Cabinet System Overview
- Speedy Deployment
- Customer-specified, factory-assembled solution reduces component count, packaging and on-site assembly, saving time and delivery cost
- Order a cabinet integrated with power, cable and thermal management preinstalled under a unique, project-specific part number
- Easy attachment and positioning of accessories allow for faster deployment and maintenance
- Optional shock pallet ensures safe delivery of racked ICT equipment
- Fast Selection and Customization
- – Wide range of standard configurations and one-on-one consultation services allow customers to create a unique solution that meets their exact requirements.
- Design now
- Future-Proof Strength
- – Roll-formed, tubular and fully welded steel frame architecture supports 5,000 lb (2268 kg) static and 4,000 lb (1814 kg) dynamic loads
- Integrated Bonding
- – Doors and panels automatically bond to the frame through door hinges and contact points, eliminating the need for attaching separate grounding straps to cabinet components
- Enhanced Cable Management –
- ZetaFrame's simple and versatile cable management accessories can be used independently or in combinations to accommodate a wide variety of applications
- Integrated Airflow Management
- – Seamless integration with optional airflow management accessories ensures effective conditioned/exhaust air separation and maximum equipment cooling
Specifications
Specifications
Chatsworth - ZA35-A1200-71 - Specifications
| Brand Name | Chatsworth |
|---|---|
| Manufacturer Part Number | ZA35-A1200-71 |
| Item Description | ZetaFrame Cabinet System |
| Height: | 79.4" (2017 mm) 42U |
| Width: | 29.5" (750 mm) |
| Depth: | 47.2" (1200 mm) |
| Doors: | Single Perforated Front/Double Perforated Rear |
| Top Panel: | Grommet-Sealed |
| Side Panels: | Two Side Panels |
| Bottom Panel: | None |
| Thermal Management: | None |
| Multi-Compartment | No |
| Color | Black |
| Material | Steel |
| Nema Rating | No Nema Rating |
| Model | Mixed Use |
| Rack Units | 42U |
| Seismic Rating | No |
| Type | Free-Standing |
| UNSPSC Code | 24102001 |
