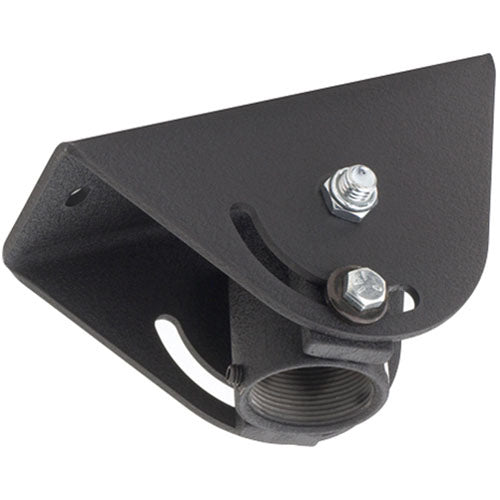

Chief Manufacturing CMA395 | Angled Ceiling Plate
Chief Manufacturing CMA395 Angled Ceiling Plate is perfect for projector installations on an angled ceiling. CMA395 adjusts from -5 degrees to +95 degrees to level an angled ceiling. Accepts 1 1/2 inch NPT threaded extension column. Three slotted mounting holes allow horizontal and vertical adjustment for a precise installation.
Chief Manufacturing - CMA395 - Features
- Adjusts from -5 to +95 to level a mount from an angled ceiling
- Three slotted mounting holes allow horizontal and vertical adjustment for a precise installation
- Compatible with 1.5" NPT threaded extension column
- Tech Info
- UL, CAVSP, CEDIA, NSCA, AIA
- Angled Ceiling Plate
- Adjusts from -5° to +95° to level a mount from an angled ceiling
- Three slotted mounting holes allow horizontal and vertical adjustment for a precise installation
- Compatible with 1.5" NPT threaded extension column
- Perfect for projector installations on an angled ceiling
- Includes set screw
- UL listed
- 500 lbs weight capacity
Specifications
Specifications
Chief Manufacturing - CMA395 - Specifications
| Manufacturer | Chief Manufacturing |
|---|---|
| Manufacturer Part Number | CMA-395 |
| Manufacturer Website Address | www.chiefmfg.com |
| Brand Name | Chief |
| Product Series | CMA |
| Product Name | CMA Angled Ceiling Plate |
| Product Type | Interface Plate |
| Material | Steel |
| Dimensions | 4.25" Height x 3" Width x 7.5" Depth |
| Package Contents | CMA Angled Ceiling Plate2 x 3/8" Washer 1 x 5/32" Hex Key1 x Coupler Assembly1 x (½"-13) Nylock Nut1 x Cathedral Ceiling Plate1 x (½"-13 X 4") Hex Head Bolt1 x (5/16"-18 X 3/8") Set Screw 2 x (3/8"-16 X 5/8") Hex Machine Screw |
| Compatibility | 1 1/2" NPT threaded extension column |
| UNSPSC Code | 45111800 |
