Chief Manufacturing CMS491CP2 | Ceiling Mount for Projector, White
Description
Description

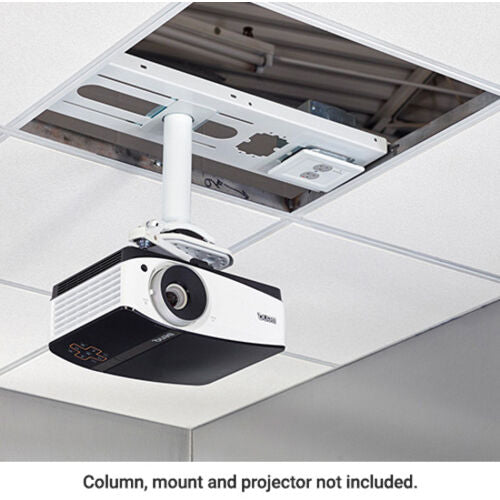

The CMS491CP2 conceals AV equipment above a 2' X 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms. Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring the SurgeX non-sacrificial multi-stage filtration and surge protection system. This protects equipment from disruptive high frequency noise and damage caused by power disturbances. Chief's powered solutions were co-developed with SurgeX, a brand of AMETEK Electronic Systems Protection. Column not included, must be purchased separately.
Chief Manufacturing - CMS491CP2 - Features
- Optimal Pipe Flexibility within the Tile Helps with Less Reliance on Image Correction Improving Image Quality
- Drop Carriage Door Improves Accessibility and Serviceability Providing Full Access to Equipment
- Detachable Power Housing Can be Pre-Installed with Electricians on Site and Assembled to the Storage Box at a Later Time
- Lightweight Construction, One Man Installation
- Non-Current Limiting Design Passes Full Power on a Regular Circuit
- Redundant Protection Circuits
- Tech Info
- UL, TAA
- Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality
- Drop carriage door improves accessibility and serviceability providing full access to equipment
- Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
- Inside the plenum box or facing the room
- Up to 2 single gang or 1 dual gang outlet
- 4 nested knockouts for 1-1/4", 1", & ½" diameter conduit
- Built in ventilation
- AV tray supports a variety of AV components
- Ships with 1 shelf, 2nd shelf sold separately see CMSUNV1
- Overall weight capacity 100 lbs (45 kg)
- 50 lbs (22 kg) for projector ceiling plate
- 25 lbs (11 kg) per shelf location
- Ships with speed connect installation hardware
- Lightweight construction, one man installation
- Plenum rated, UL approved in accordance to 2043
- TAA Compliant
Specifications
Specifications
Chief Manufacturing - CMS491CP2 - Specifications
| Manufacturer | Milestone AV Technologies |
|---|---|
| Manufacturer Part Number | CMS491CP2 |
| Manufacturer Website Address | http://www.milestone.com |
| Brand Name | Chief |
| Product Series | CMS |
| Product Model | CMS491CP2 |
| Product Name | 1' x 2' Plenum Rated Storage Box and Column Drop with 2-Gang Filter & Surge |
| Product Type | Ceiling Mount |
| Device Supported | Projector |
| Maximum Load Capacity | 99.21 lb |
| Color | White |
| Package Contents | 1' x 2' Plenum Rated Storage Box and Column Drop with 2-Gang Filter & Surge Power Housing Mounting Hardware |
| UNSPSC Code | 45111800 |
