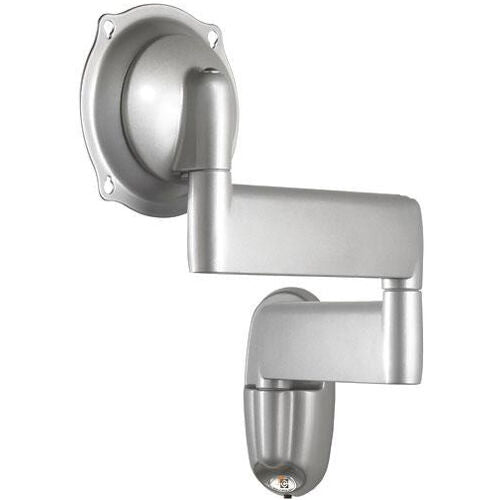

Chief Manufacturing JWD210S | Display Mount, Wall, Silver
Regular price
$316.37
Unit price
Brand: Chief Manufacturing
|
SKU:
854141
Regular price
$316.37
Unit price
Description
Description
Chief Manufacturing JWD210S | Display Mount, Wall, Silver
It provides a broad range of motion for viewing Medium Flat Panel Displays (26" to 40" screens) from multiple angles.
Chief Manufacturing - JWD210S - Features
- Centris Fingertip Tilt Provides Smooth Tilt Adjustment in All Directions
- Gravity-Centered Tilt Self-Adjusts to Securely Hold Different Display Weights
- Teardrop Hole Pattern Makes Mounting the Screen Quick and Easy
- Portrait and Landscape Screen Installtion
- Smooth Extension to Achieve Ideal Viewing Angle
- Independently Adjustable Tension at Pivot Points for Customized Control
- Folds in Close to the Wall for a Low Profile Appearance
- Centris Fingertip Tilt provides smooth tilt adjustment in all directions
- Gravity-centered tilt self-adjusts to securely hold different display weights
- Teardrop hole pattern makes mounting the screen quick and easy
- Portrait and landscape screen installation
- Smooth extension to achieve ideal viewing angle
- Independently adjustable tension at pivot points for customized control
- Folds in close to the wall for a low-profile appearance.
- Quick, easy cable management
- Sleek, attractive design hides all hardware
- Ships assembled
- Single stud wall mounting
- Universal models available for VESA® 100 x 100 mm up to 400 x 400mm mounting patterns
- MSB interface bracket can be purchased separately for non-VESA compatible screens
Specifications
Specifications
Chief Manufacturing - JWD210S - Specifications
| Manufacturer | Chief Manufacturing |
|---|---|
| Manufacturer Part Number | JWD-210S |
| Manufacturer Website Address | www.chiefmfg.com |
| Brand Name | Chief |
| Product Series | JWD |
| Product Name | JWD Dual Swing Arm Wall Mount |
| Product Type | Mounting Arm |
| Maximum Load Capacity | 75 lb |
| Minimum Screen Size Support | 26" |
| Maximum Screen Size Support | 40" |
| Package Contents | JWD Dual Swing Arm Wall Mount Includes: 1 x Interface Adapter 1 x Wall Bracket 2 x Cable Management Bracket 2 x Lag Screws (3/8" x 3") 4 x Phillips Pan Head Machine Screw (8-32 x 3/8") 4 x Phillips Pan Head Machine Screw (M4 X 8mm ) 4 x Phillips Pan Head Machine Screw( M4 X 12mm) 6 x Phillips Flat Head Machine Screw (M4 X 16mm) 4 x Phillips Pan Head Machine Screw (M4 X 20mm) 4 x Phillips Pan Head Machine Screw (M6 X 20mm) 4 x Phillips Pan Head Machine Screw (M6 X 30mm) 4 x Phillips Pan Head Machine Screw (M6 X 45mm 6 x Nylon Spacer (1/8") 4 x Nylon Spacer (1/4") 4 x Nylock Nut (10-24) 1 x Hex Key (5/32") 1 x Hex Key (3/16") |
| Additional Information | Color: Silver Pivot: 180 degree Depth from the wall is 2.69" VESA compliant with 100 x 100mm, 100 x 200 mm or 200 x 200 mm pattern. Gravity-Centered Tilt provided by Patent-pending Centris Technology (15 degrees in any direction) Single Stud Wall mounting Simple three-step installation |
| UNSPSC Code | 45111800 |
