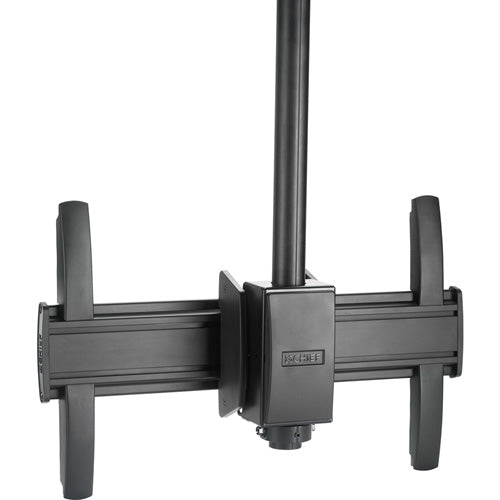

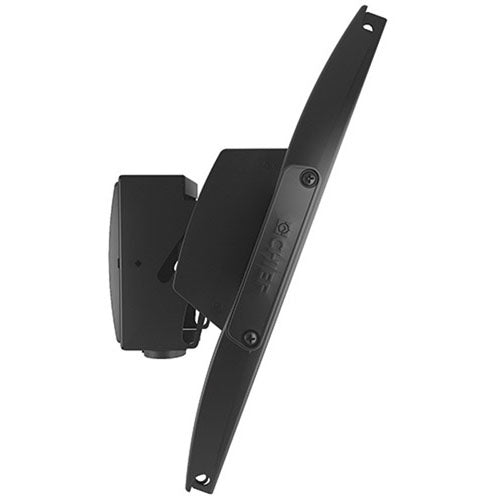

Chief Manufacturing LCM1U | TV Mount, Large Flat Panel, Ceiling, Universal, Landscape, +5/-20 Degree Tilt
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Chief Manufacturing LCM1U | TV Mount, Large Flat Panel, Ceiling, Un...
Description
Description
Chief Mounts - TV Mounts - Ceiling
Chief Manufacturing LCM1U FUSION Large Flat Panel Ceiling Mount are installer inspired and offer perfect TV positioning and flexible adjustments for large flat panel screens. Great for digital signage installations. The continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens. This mount is compatible with traditional 1.5 in. NPT and new CPA pinned ceiling plates and column systems.
Chief Manufacturing - LCM1U - Features
- Ceiling Plate andextension columnare required and must be ordered separately
- Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
- Seeceiling platesand extension columns (AdjustableandFixed) for 1.5" NPT compatibility
- See CPA ceiling plates and CPA columns for pinconnectioncompatibility
- Can withstand a maximum weight of 125 lb
- Suits displays with 200 x 100 mounting hole pattern
- Simple on/off connection for ease of installation and service
- Effortlessly adjust display using Centris fingertip tilt technology
- Tool free screen engagement with optional padlock security
- Mount swivels to any preferred viewing angle
- 125 lbs. equipment weight capacity
- Landscape orientation
- UL Listed
- Color: Black
Specifications
Specifications
Chief Manufacturing - LCM1U - Technical Drawing
| Click on image to enlarge. |
|---|
Chief Manufacturing - LCM1U - Specifications
| Manufacturer | Chief Manufacturing |
|---|---|
| Manufacturer Part Number | LCM1U |
| Manufacturer Website Address | www.chiefmfg.com |
| Brand Name | Chief |
| Product Line | FUSION |
| Product Model | LCM1U |
| Product Name | FUSION Large Flat Panel Ceiling Mount |
| Product Type | Ceiling Mount |
| Device Supported | Flat Panel Display |
| Maximum Load Capacity | 125.00 lb |
| UNSPSC Code | 45111800 |
