Brand: Chief Manufacturing
|
SKU:
745412-NOB
Chief Manufacturing LVS1U | TV Mount, Wall Mount, Universal, Landscape
Regular price
$912.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Chief Manufacturing LVS1U | TV Mount, Wall Mount, Universal, Landscape
Regular price
$912.05
Unit price
Brand: Chief Manufacturing
|
SKU:
745412-NOB
Regular price
$912.05
Unit price
Shipping calculated at checkout.
Description
Description

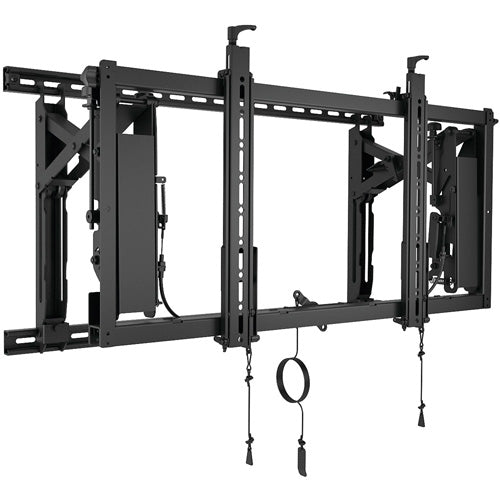

Chief Manufacturing LVS1U | TV Mount, Wall Mount, Universal, Landscape
Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.
Chief Manufacturing - LVS1U - Features
- Sustains a maximum load capacity of 150 lb
- Supports 80" displays
- Suits the screens with 200 x 100 mounting hole pattern
- Tool-free ClickConnect latching secures displays
- PowerZone provides 6 points of adjustment in one easy-to-access location at the top of the mount
- PowerZone Adjustments
- Tilt adjustment at single pivot point, protects displays from twisting
- Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations
- Both sides adjust independently, compensating for imperfections in the wall
- RapidDraw Display Release
- UL Listed
- 150 lbs. weight capacity
Specifications
Specifications
Chief Manufacturing - LVS1U - Specifications
| Manufacturer | Chief Manufacturing |
|---|---|
| Manufacturer Part Number | LVS1U |
| Manufacturer Website Address | http://www.chiefmfg.com |
| Brand Name | Chief |
| Product Line | ConnexSys |
| Product Model | LVS1U |
| Product Name | ConnexSys Video Wall Landscape Mounting System with Rails |
| Product Type | Wall Mount |
| Device Supported | Flat Panel Display |
| Maximum Load Capacity | 150 lb |
| Minimum Screen Size Supported | 42" |
| Maximum Screen Size Supported | 80" |
| Maximum Adjustable Width | 13.40" |
| Maximum Adjustable Height | 1" |
| UNSPSC Code | 45111800 |
