Chief Manufacturing MTA1U | Display Mount, Wall
Description
Description
Chief Mounts - Chief Mounts - TV Mounts - Wall - Tilting

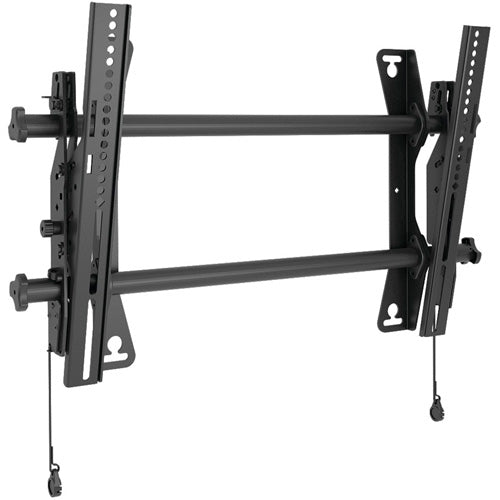

Chief Manufacturing MTA1U Medium Fusion Tilt Wall Mount design is based on installer feedback and direct observations of installers in the field. Features join Fusion favorites like Centerless shift, Centris tilt and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security. Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
Chief Manufacturing - MTA1U - Features
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with he mount and the entire unit can be adjusted together
- Tech Info
- UL, TUV
- Can withstand a maximum weight of 125 lb
- Supports 65" displays
- Suits displays with 100 x 100 mounting hole pattern
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Improved cable management with new end caps
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- UL Listed
- 125 lbs. weight capacity
Specifications
Specifications
Chief Manufacturing - MTA1U - Technical Drawing
| Click on image to enlarge. |
|---|
Chief Manufacturing - MTA1U - Specifications
| Manufacturer | Chief Manufacturing |
|---|---|
| Manufacturer Part Number | MTA1U |
| Manufacturer Website Address | http://www.chiefmfg.com |
| Brand Name | Chief |
| Product Line | Fusion Wall Tilt |
| Product Model | MTA1U |
| Product Name | Medium Fusion Tilt Wall Mount |
| Product Type | Wall Mount |
| Device Supported | Flat Panel Display |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 125 lb |
| Minimum Screen Size Supported | 26" |
| Maximum Screen Size Supported | 47" |
| UNSPSC Code | 45111800 |
