Chief Manufacturing OB1U | Wall Mount for Interactive Display - Silver
Regular price
$402.41
Unit price
Brand: Chief Manufacturing
|
SKU:
980541
Regular price
$402.41
Unit price
Description
Description

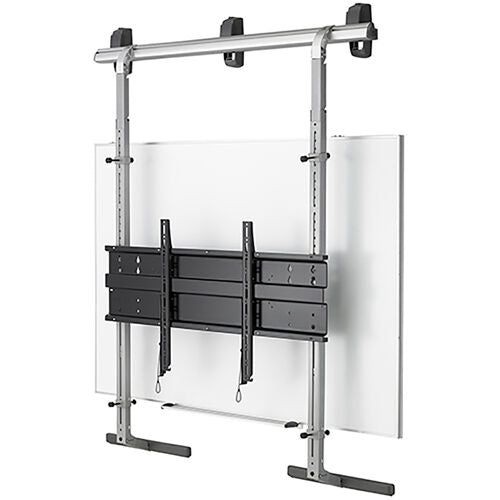

Chief Manufacturing OB1U | Wall Mount for Interactive Display - Silver

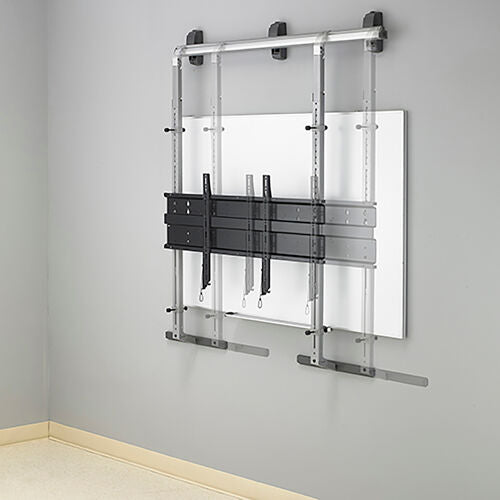

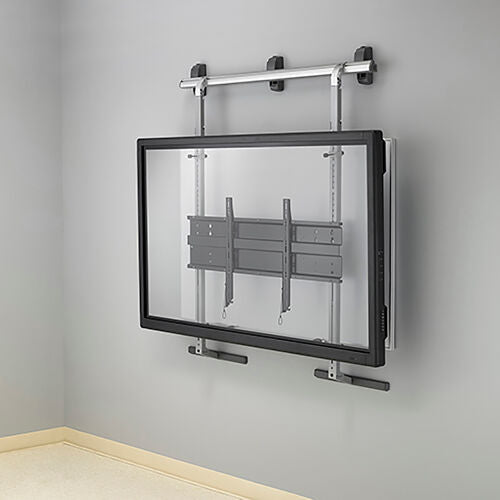

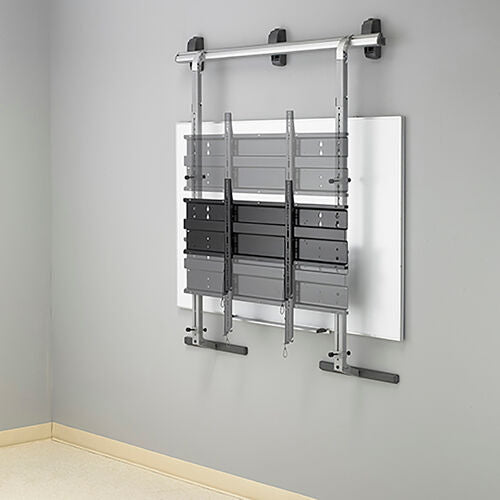

The Over-the-Whiteboard Interactive Display Mount allows for easy installation and adjustment of heavy interactive flat panel displays over existing chalkboards or whiteboards. The mount comes largely pre-assembled with minimal hardware, reducing installation time. It also provides height variability to accommodate younger children or those seated at lower levels.
Chief Manufacturing - OB1U - Features
- Accommodates typical large displays between 50-80" andVESA® up to 1020 - 500 mm, specify FHB7036 bracket to extend to VESA® 1020 - 600 mm
- Heavy-duty weight capacity of 310 lbs (140.6 kg)
- Display height adjustment range of 26" (660 mm)
- Interface brackets mount directly to display, then hang on single rail-style cross bracket, eliminating need to remove display from box prior to installation
- Installs into various wall types (wood, concrete, steel, cinder-block)
- Flexible wall assembly anchoring points ensure a minimum of two studs are used - three brackets for 16" on-center studs, or two brackets for 24" on-center studs are included
- Integrated lateral shift allows for easy adjustment left or right
- When installed, mount allows for a minimum of 4" (102mm) clearance from wall
- Plumb adjustment up to 1.5° to compensate for uneven walls
- Telescoping legs allow mount to be adjusted easily around classroom obstacles
Specifications
Specifications
Chief Manufacturing - OB1U - Specifications
| Manufacturer | Milestone AV Technologies |
|---|---|
| Manufacturer Part Number | OB1U |
| Manufacturer Website Address | http://www.milestone.com |
| Brand Name | Chief |
| Product Series | OB1 |
| Product Model | OB1U |
| Product Name | Over-the-Whiteboard Interactive Display Mount |
| Product Type | Wall Mount |
| Device Supported | Interactive Display |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 309.97 lb |
| Maximum Screen Size Supported | 80" |
| Color | Silver |
| UNSPSC Code | 45111800 |
