Chief Manufacturing PAC527L | Audio and Video Mounting, Wall, Black
Regular price
$290.40
Unit price
Brand: Chief Manufacturing
|
SKU:
10087335
Regular price
$290.40
Unit price
Description
Description

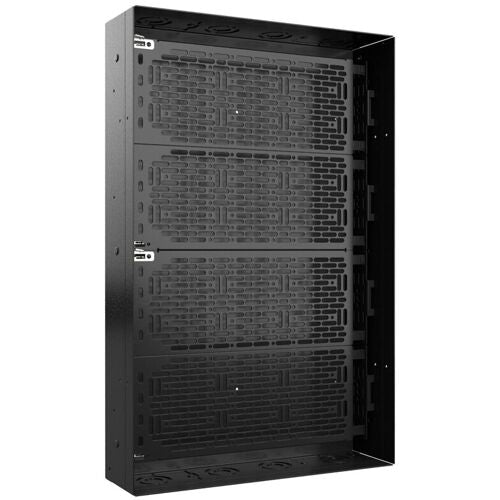

Chief Manufacturing PAC527L | Lg Inwall Box 14.25X22 Ll, Proximity In-Wall Storage Box, Black, for AV Systems PAC527L | Audio and Video Mounting, Wall, Black
The new PAC527L now includes two large tool-free Lever Lock™ plates for quick installation of AV equipment and efficient servicing of the system. Lever Lock™ plates can be mounted on four different levels to easily organize and layer components within the in-wall box. Lever Lock™ plates are compatible with Middle Atlantic Products'Forward Cable Management Solutions. Optionally also include one of the following power protection options:
- Two outlet Power Filter Kit PACPC1
- Four outlet Power Filter and Surge Protection Kit PAC527P4-KIT
- Six outlet Power Filter and Surge Protection Kit PAC527P6-KIT
- Two outlet IP controlled Select Series Compact PDU with RackLink™ from Middle Atlantic Products
Chief Manufacturing - PAC527L - Features
- Multiple depth break away edge allows compatibility with standard 3.5" stud and 2.5" stud bays (89 or 64 mm)
- Provides a larger, easy-to-organize space to accommodate AV equipment - 22" (559 mm) tall
- Pre- and post-construction installation options
- Kockouts for single gang outlets and 1-1/4", 1", and 1/2" conduit
- Unmatched small device mounting flexibility built-in, with patented Lever Lock plates
- Patented universal hole pattern simplifies mounting of small devices
- Includes PACL2 Lever Lock pltes mountable at four different depths in four different locations
- Allows for AV devices to be mounted in advance before terminating cables on site
- PACL2 plate can be snapped in half to create two smaller sections
- Printable backplane template for panning purposes
- Additional PACL2 Lever Lock plates can be purchased separately for even more mounting options
- For electrical safety, Lever Lock plates are black zinc plated which allows them to be grounded to the in-wall box via the spring-loaded lever

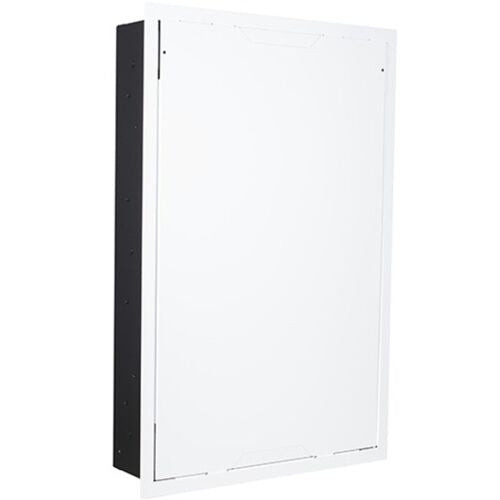

- Optional black PAC527F-KIT or white PAC527FW-KIT paintable flanges and black PAC527CVR-KIT or white PAC527CVRW-KIT covers to blend in any environment
- Enclosure is UL 2416 Listed for installation of AV, IT & Communication Technology Equipment
- Multiple depth break away edge allows compatibility with standard 3.5" stud and 2.5" stud bays (89 or 64 mm)
- Provides a larger, easy-to-organize space to accommodate AV equipment - 22" (559 mm) tall
- Pre- and post-construction installation options
- Knockouts for single gang outlets and 1-1/4" , 1" , and ½" conduit
- Unmatched small device mounting flexibility built-in, with patented Lever Lock™ plates
- Patented universal hole pattern simplifies mounting of small devices
- Includes PACL2 Lever Lock™ plates mountable at four different depths in four different locations
- Allows for AV devices to be mounted in advance before terminating cables on site
- PACL2 plate can be snapped in half to create two smaller sections
- Printable backplane template for planning purposes
- Additional PACL2 Lever Lock™ plates can be purchased separately for even more mounting options
- For electrical safety, Lever Lock™ plates are black zinc plated which allows them to be grounded to the in-wall box via the spring-loaded lever
- Optional black PAC527F-KIT or white PAC527FW-KIT paintable flanges and black PAC527CVR-KIT or white PAC527CVRW-KIT covers to blend in any environment
- Enclosure is UL 2416 Listed for installation of AV, IT & Communication Technology Equipment
Specifications
Specifications
Chief Manufacturing - PAC527L - Specifications
| Manufacturer | Legrand Group |
|---|---|
| Manufacturer Part Number | PAC527L |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Chief |
| Product Line | Proximity |
| Product Model | PAC527L |
| Product Name | Proximity PAC527L Extra-Large In-Wall Storage Box with Lever Lock |
| Product Type | Mounting Box |
| Device Supported | A/V Equipment |
| Maximum Load Capacity | 50 lb |
| Features | Lockable |
| UNSPSC Code | 45111800 |
