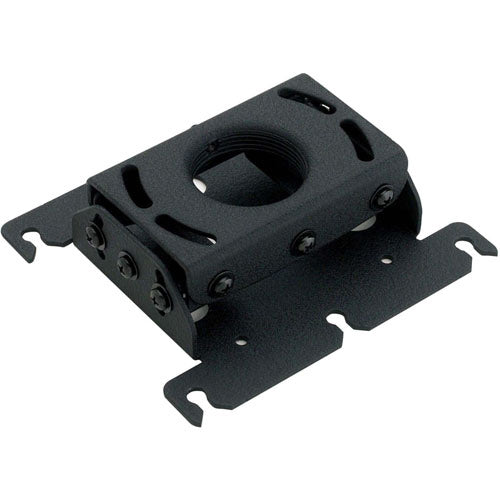

Chief Manufacturing RPA315 | Projector Mount, Ceiling
Description
Description
Chief's RPA Series Inverted Ceiling Mount with the exclusive All-Points Security System is the top-selling projector mount in the industry! More RPA Series Mounts are installed in offices, schools and homes than any other mount. Why is the RPA so popular? Because it gives you everything you need for a quick installation, low-profile look and hassle-free projector maintenance. Also, a winner in the Media & Methods 2003 Awards Portfolio for making a significant contribution to the school market.The RPA can be flush mounted without additional accessories.
Chief Manufacturing - RPA315 - Features
- Independent Roll, Pitch and Yaw for Quick and Precise Projector Registration
- Quick Projector Connect and Disconnect with Convenient Lamp and Filter Access on Most Projectors
- Maintains Registration When Disconnected and Doesn’t Affect Preset Adjustments
- All Points Security Exclusive Steel into Steel Locking Hardware at All Key Connection Points to Protect Against Theft
- Multiple Installation Options Like Flush Mount to Ceiling, Mount with 0.25" Threaded Rods or Mount with 1.5" NPT Threaded Extension Column
- Tech Info
- UL
- Device Supported: Projector
- Maximum Load Capacity: 50 lb
- Product Color: Black
- Product Material: Steel
- Compatibility: Projectors, PG-1 Projector Guard Security Cage
- Country of Origin: United States
Specifications
Specifications
Chief Manufacturing - RPA315 - Specifications
| Manufacturer | Chief Manufacturing |
|---|---|
| Manufacturer Part Number | RPA315 |
| Manufacturer Website Address | www"chiefmfg"com |
| Brand Name | Chief |
| Product Series | RPA |
| Product Name | RPA315 Inverted Ceiling Projector Mount |
| Product Type | Ceiling Mount |
| Load Capacity | 50 lb Maximum |
| Color | Black |
| Material | Steel |
| Additional Information | Low-profile, aesthetic design Quick projector disconnect/reconnect Easy installation - no assembly Independent roll, pitch and yaw adjustments make it easy to precisely register the projector Disconnect without affecting adjustments Convenient lamp and filter access All-Points Security System included at no additional cost (not available with all RPA Series Mounts) Three ceiling mounting methods Allows cables to be routed through the top of the mount without additional accessories Compatible with a large assortment of accessories to easily overcome a variety of installation challenges Allows natural convection ventilation Column 1"5" NPT Roll Adjustment: +/- 4 degrees adjustment up or down" Loosen screw, adjust mount and tighten screw to hold adjustment Pitch Adjustment: +/- 25 degrees adjustment on each side of the mount" Loosen screw, adjust mount and tighten screw to hold adjustment,full range of pitch in a flush mount installation Yaw Adjustment: 360 degrees by turning the mount on the threaded column and securing in place with set screw" 12 degrees yaw possible on flush mount using slots in top of RPA |
| Projectors PG-1 Projector Guard Security Cage | UL |
| UNSPSC Code | 45111800 |
