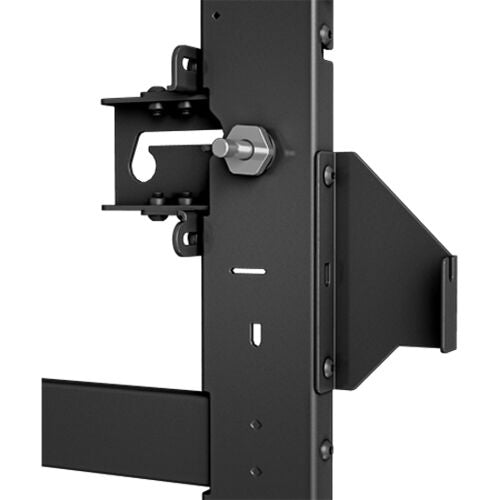

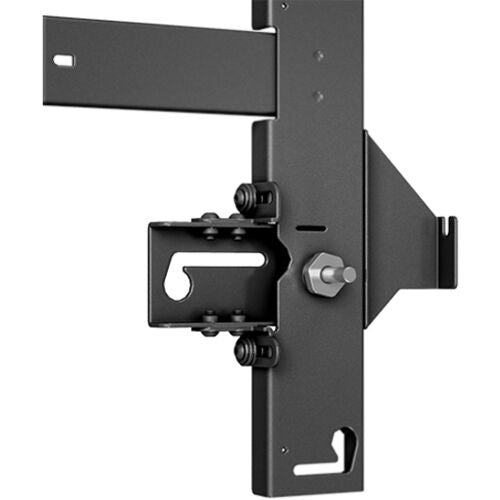

Chief Manufacturing TIL1X2PT | Display Mount, Wall
Description
Description
The TiLED LED Video Wall Mounting System is designed to mount 2 vertically stacked LED displays from the LG LAS Fine-pitch and Leyard TVF Series. Simply stack LED displays to create one continuous video wall. Chief's modular design attaches to the top, bottom, and sides of other mounts to support endless design configurations. TiLED Video Wall Mounting Systems feature offset mounting slots to protect LED displays from damaging friction during installation. Once displays are in place, variable X,Y, a nd Z-axis adjustments allow perfect positioning and alignment for a flawless video wall.
Built for the LG LAS Fine-pitch and Leyard TVF Series. Mounts 2 vertically stacked LED displays. The TiLED™ modular design connects to sides, top and bottom of other mounts to create endless video wall configurations. Off-the-shelf solution set means product is ready to ship - no custom lead time or project registration required.
Chief Manufacturing - TIL1X2PT - Features
- Modular design supports creative video wall design
- Integrated z-axis plumb adjustment helps compensate for wall imperfections
- Lateral and vertical shift enable mount and LED adjustments
- Keyhole slots allow for fast and easy mount installation
- Offset unting slots for easy installation and to protect LED sides from damaging friction
- Depth range with display between 3.59" - 4.34" (91-110 mm) for low-profile result
- Standard, off-the-shelf solution set means product is stockable and ready to ship - no custom lead times
- Modular design supports creative video wall design
- Integrated z-axis plumb adjustment helps compensate for wall imperfections
- Lateral and vertical shift enable mount and LED adjustments
- Keyhole slots allow for fast and easy mount installation
- Offset mounting slots for easy installation and to protect LED sides from damaging friction
- Depth range with display between 3.59" - 4.34" (91-110 mm) for low-profile result
- Standard, off-the-shelf solution set means product is stockable and ready to ship - no custom lead times
- Compatibility: LG LAS Fine-pitch: LAS012DB2-F,LAS012DB4-F,LAS012DB7-F,LAS014DB2-F,LAS014DB4-F,LAS014DB7-F,LAS015DB2-F,LAS015DB4-F,LAS015DB7-F,LAS018D...
- Limited Warranty: 10 Year
Specifications
Specifications
Chief Manufacturing - TIL1X2PT - Specifications
| Manufacturer | Milestone AV Technologies |
|---|---|
| Manufacturer Part Number | TIL1X2PT |
| Manufacturer Website Address | http://www.milestone.com |
| Brand Name | Chief |
| Product Series | TIL |
| Product Name | 1x2 LED Mount for LG LAS Fine-pitch and Leyard TVF Series |
| Product Type | Wall Mount |
| Number of Displays Supported | 2 |
| Maximum Load Capacity | 40 lb |
| Compatibility | LG LAS Fine-pitch: LAS012DB2-F LAS012DB4-F LAS012DB7-F LAS014DB2-F LAS014DB4-F LAS014DB7-F LAS015DB2-F LAS015DB4-F LAS015DB7-F LAS018DB2-F LAS018DB4-F LAS018DB7-F LAS025DB2-F LAS025DB4-F LAS025DB7-F Planner TVF Series Leyard TVF 1.5 Leyard TVF 1.8 Leyard TVF 2.5 |
| UNSPSC Code | 45111800 |
