Chief Manufacturing VCTUW | Projector Mount, Ceiling, White
Regular price
$797.08
Unit price
Brand: Chief Manufacturing
|
SKU:
10081379
Regular price
$797.08
Unit price
Description
Description

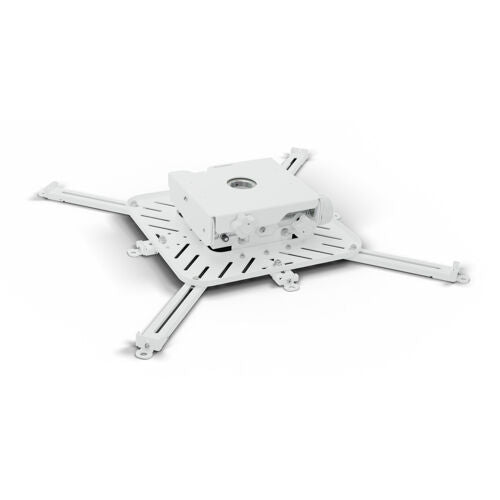

Chief Manufacturing VCTUW | Xl Universal tool-Free Projector Mount, Ceiling Mount for Projector, White VCTUW | Projector Mount, Ceiling, White
The VCTUW XL Universal Tool-free Projector mount was designed to install quickly while maintaining a sleek aesthetic. Lighter and slimmer than its predecessor, the VCM, the VCT works well with laser projectors between 50-150 lbs (22.7 - 68 kg). Tool-free MicroZone adjustment ensures accurate and reliable image registration. Includes the HCUW Universal Interface.
Chief Manufacturing - VCTUW - Features
- Low Profile
- The new VCT is 30% slimmer than the VCM mount
- Lightweight
- The new VCT is 25% lighter than the VCM mount
- Sleek Aesthetic
- Matching knobs & hardware
- Available in black and white finish options
- Tool-free MicroZone+ Gearbox Pitch Adjustment
- The fine tune pitch adjustment has a 100: 1 gear ratio for precise image alignment
- Can be hand adjusted using the tool-free knob or driven with a 1/2" (13mm) socket
- PrecisionSet™ technology to lock in pitch adjustments
- Tool-free MicroZoneTM Roll & Yaw Adjustments
- Gear driven tool-free knob adjustments
- Lockout nuts enable additional image lock security
- New Universal Interface
- Universal plate is sized to accommodate most patterns within footprint
- Short attachment legs reduce clutter for smaller projector installation patterns
- Long attachment legs extend reach for larger projector installation patterns
Specifications
Specifications
Chief Manufacturing - VCTUW - Specifications
| Manufacturer | Milestone AV Technologies |
|---|---|
| Manufacturer Part Number | VCTUW |
| Manufacturer Website Address | http://www.milestone.com |
| Brand Name | Chief |
| Product Model | VCTUW |
| Product Name | XL Universal Tool-Free Projector Mount |
| Product Type | Ceiling Mount |
| Maximum Load Capacity | 150 lb |
| Color | White |
| Package Contents | XL Universal Tool-Free Projector Mount HCUW Universal Interface |
| Environmentally Friendly | Yes |
| UNSPSC Code | 45111800 |
