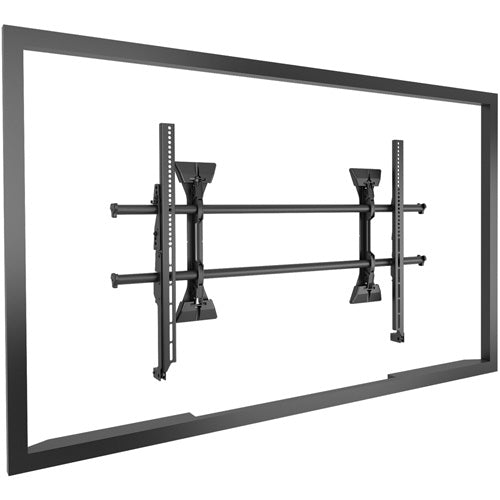

Chief Manufacturing XSM1U | TV Mount, XL, Fusion Micro-Adjustable, Fixed, Wall Mount, Universal, Landscape
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Chief Manufacturing XSM1U | TV Mount, XL, Fusion Micro-Adjustable, ...
Description
Description
Chief Mounts - TV Mounts - Wall - Fixed
Chief Manufacturing XSM1U Extra Large Fusion Micro-Adjustable Fixed Wall Display Mount includes features like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security. Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
Chief Manufacturing - XSM1U - Features
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone Leveling for post-installation fine tuning of height and leveling
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire uni can be adjusted together
- Tech Info
- UL, TUV
- Sustains a maximum load capacity of 250 lb
- Supports 100" displays
- Suits the screens with 100 x 100 mounting hole pattern
- Centerless Shift provides up to 21.4" (543 mm) of post-installation lateral shift for limitless centering
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Improved cable management with new end caps
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
- 250 lbs. Weight capacity
- UL Listed
Specifications
Specifications
Chief Manufacturing - XSM1U - Technical Drawing
| Click on image to enlarge. |
|---|
Chief Manufacturing - XSM1U - Specifications
| Manufacturer | Chief Manufacturing |
|---|---|
| Manufacturer Part Number | XSM1U |
| Manufacturer Website Address | http://www.chiefmfg.com |
| Brand Name | Chief |
| Product Line | Fusion Wall Fixed |
| Product Model | XSM1U |
| Product Name | X-Large Fusion Micro-Adjustable Fixed Wall Display Mount |
| Product Type | Wall Mount |
| Device Supported | Flat Panel Display |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 250 lb |
| Minimum Screen Size Supported | 55" |
| Maximum Screen Size Supported | 82" |
| UNSPSC Code | 45111800 |
