Description
Description

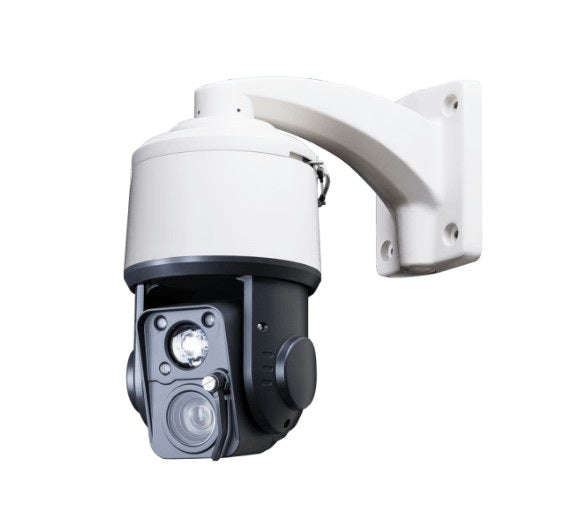

Clinton Electronics CE-PTZ20XHDR | EX-SDI 2.0 20x PTZ w/ Zoom IR
When it comes to surveying a large scene, nothing beats the flexibility of a PTZ. The CE-PTZ20XHDR features a 4.7~94mm (ƒ1.6~ƒ3.5) 20x zoom lens, a high-intensity zoomable IR LED, a temperature controlled enclosure, and a built-in wiper. Includes wall bracket and features 1.5? NPT top for added mounting options.
Clinton Electronics - CE-PTZ20XHDR - Features
- 1/3? PANASONIC 2 Megapixel CMOS Sensor
- 1080p @ 30/60 FPS; 720p @ 30/60 FPS
- 2MP EX-SDI 2.0 / HD-SDI & Analog (CVBS) Outputs
- 5.2~104mm (ƒ1.5~ƒ3.5) True D/N Lens
- 20x Optical Zoom and 32x Digital Zoom
- Temperature Controlled by Heater and Fan
- 255 Presets, 8 Tours, 8 Scans, 4 Patterns, 16 Areas, and 4 Alarms
- 360° Horizontal (Pan) and -8° to 188° Vertical (Tilt)
- 1 Motorized IR Zoom Lens with Adjustable Intensity and Distance, 2 Fixed IR LEDs for improved wide angle night viewing
- Approximate IR Distance 450?
- Optically-perfect flat viewing window prevents blooming and smearing
- IP67 Weather-rated polycarbonate housing
- Safety Cable prevents the PTZ from falling during Installation and Maintenance
- Built-in wiper keeps lens clear of moisture and dust
- Includes wall bracket
- RS-485, RS-422, or UCC Communication
- 4 Alarm Inputs / 2 Alarm Outputs
- DC24V/AC24V (Power Supply Sold Separately)
- 1.5? NPT Threaded Male End
- Supports Multiple Protocols
- NDAA Compliant
Specifications
Specifications
Clinton Electronics - CE-PTZ20XHDR - Product Categories
- Security
- Video Surveillance
- Video Accessories
Clinton Electronics - CE-PTZ20XHDR - Specifications
| Brand Name | Clinton Electronics |
|---|---|
| Manufacturer Part Number | CE-PTZ20XHDR |
| Type | Lens |
| Special Property | Motorized Zoom |
| UNSPSC Code | 46171600 |
| Image Sensor | 1/3? PANASONIC CMOS |
| Scanning System | Progressive Scan |
| Minimum Illumination | Day: 0.5 Lux (1/30 sec.) |
| Resolution | HD-SDI: 1080p |
| CVBS: 700 TVL | S/N Ratio |
| Shutter Speed | 1/30(25) – 1/30,000 sec. |
| Effective Pixels | 1944 (H) x 1092 (V) = 2.12 Megapixels |
| Frame Rate | 1080p: 30 / 60 FPS |
| Lens Type | Motorized Vari-Focal Auto-Focusing |
| True Day / Night | Yes |
| Focal Range | 5.2~104mm |
