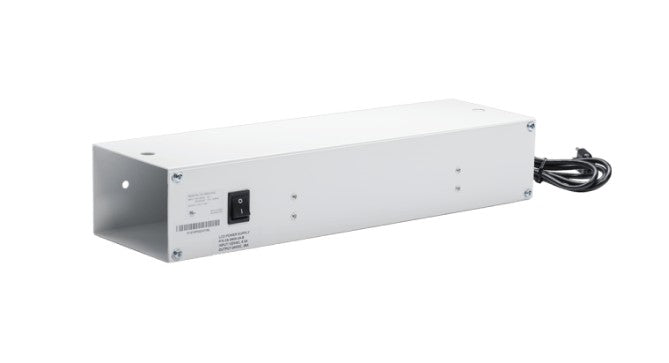

Clinton Electronics CE-S600-24-B | DC24V (25 Amp) 3 PVM Power Supply
When more power is required, this is the perfect power supply. By using the adjustable voltage potentiometer, the voltage can be increased to 27 volts, ensuring the connected PVMs, LCDs or PTZs get enough power. Short Circuit, Overload, Over Voltage, and Temperature Protection ensure long-lasting power output. UL Listed Components.
Clinton Electronics - CE-S600-24-B - Features
- Short Circuit, Overload, Over Voltage, and Temperature Protection
- Truss Mount, 19" Rack Mount, or Wall Mount
- 3 Terminal Block DC 24 Volt Output
- DC24V, 25 Amps
- Converts AC110V to DC24V
- 3 Terminal Block DC24V Outputs
- Adjustable Voltage from DC 20-27V
- Short Circuit, Overload, Over Voltage, and Temperature Protection
- Truss Mount, 19? Rack Mount, or Wall Mount
- Recommended for all Clinton DC24V LCDs or PVMs
- UL Listed Components
Specifications
Specifications
Clinton Electronics - CE-S600-24-B - Product Categories
- Audio and Visual
- Video Display Equipment
- Video Display Equipment Accessories
Clinton Electronics - CE-S600-24-B - Specifications
| Brand Name | Clinton Electronics |
|---|---|
| Manufacturer Part Number | CE-S600-24-B |
| UNSPSC Code | 52161600 |
| Technical Information | UL (Canada and US), FCC |
| Input Voltage | AC 88-132V /AC 176-264V |
| Total Amps | 25 Amps |
| Setup, Rise, and Hold Up Times | 1000ms, 50ms, 14ms (Full Load) |
| Output Voltage | DC 20-27V ±10% (adjustable) |
| Overload Protection | 105% – 135% rated Hiccup Mode; Auto Recovery |
| Product Dimensions | 19? (W) x 5? (D) x 3.5? (H) |
| Product Weight | 11.2 lbs (5.08 kg) |
| Housing | Steel |
| Options | Truss, 19? Rack, Wall |
| Operating Temperature | 32° to 104° F (0° to 40° C) |
| Standards UL | Listed Components |
