Brand: CommScope
|
SKU:
244709

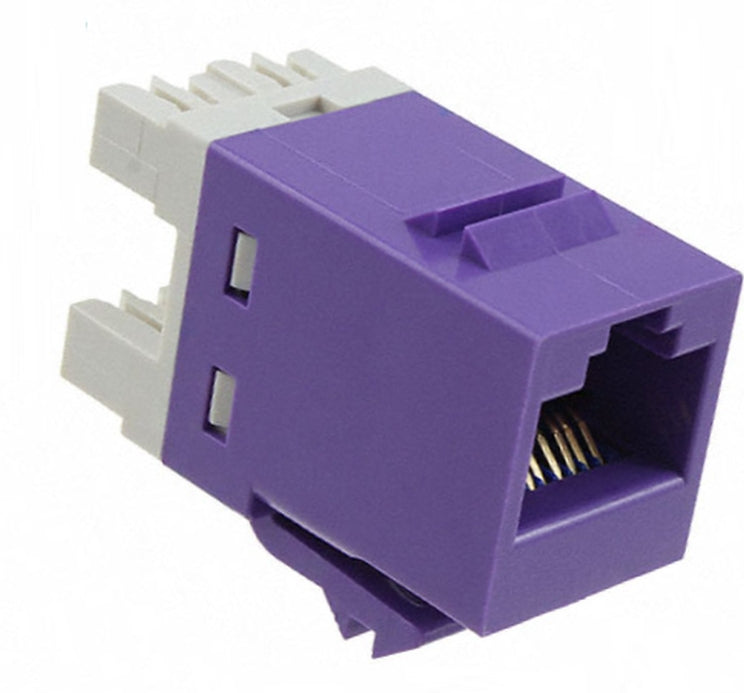

Commscope 1-1375191-0 | RJ45 Modular Jack, SL Series, Category 5e, unshielded, without dust cover, violet
Regular price
$11.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 1-1375191-0 | RJ45 Modular Jack, SL Series, Category 5e, ...
Regular price
$11.11
Unit price
Description
Description
Commscope 1-1375191-0 | RJ45 Modular Jack, SL Series, Category 5e, unshielded, without dust cover, violet
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Modular jack |
| Product Series | SL Series |
General Specifications
| ANSI/TIA Category | 5e |
|---|---|
| Cable Type | Unshielded |
| Color | Violet |
| Conductor Type | Solid / Stranded |
| Integrated Dust Cover Type | None |
| Mounting | SL Series faceplates and panels |
| Outlet Type | Standard |
| Termination Punchdowns, minimum | 200 times |
| Termination Tool | SL Termination tool |
| Termination Type | IDC |
| Transmission Standards | ANSI/TIA-568-C.2 / ISO/IEC 11801 Class D |
| Wiring | T568A / T568B |
Dimensions
| Panel Cutout, recommended | 14.78 x 20.07 mm (0.58 x 0.79 in) |
|---|---|
| Panel Thickness, recommended | 1.6 mm / 0.063 in |
| Height | 16.26 mm / 0.64 in |
| Width | 14.48 mm / 0.57 in |
| Depth | 30.48 mm / 1.2 in |
| Compatible Insulated Conductor Diameter, maximum | 1.45 mm / 0.057 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 24–22 AWG |
| Compatible Conductor Gauge, stranded | 26–24 AWG |
Electrical Specifications
| Remote Powering | Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002 |
|---|---|
| Safety Voltage Rating | 150 Vac |
Material Specifications
| Contact Base Material | Beryllium copper |
|---|---|
| Contact Plating Material | Gold |
| Material Type | Polycarbonate |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
|---|---|
| Plug Retention Force, minimum | 89 N / 20.008 lbf |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
|---|---|
| Flammability Rating | UL 94 V-0 |
| Safety Standard | CSA / cUL |
Packaging and Weights
| Included | Strain relief cap |
|---|---|
| Packaging quantity | 1 |
| Packaging Type | Bag |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- 1375191 SL 110 Modular Jack Assembly, Category 5e
- Customer View Model (pdf)
- 408-8417 SL, Secure SL, E, KJ and M Series Modular Jacks
- Statement of Compliance RoHS/REACH
- 1-1375191-0 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- 501-2479 SL Series Jacks, Category 5e
