Brand: CommScope
|
SKU:
CM-02524MAX-5-MT

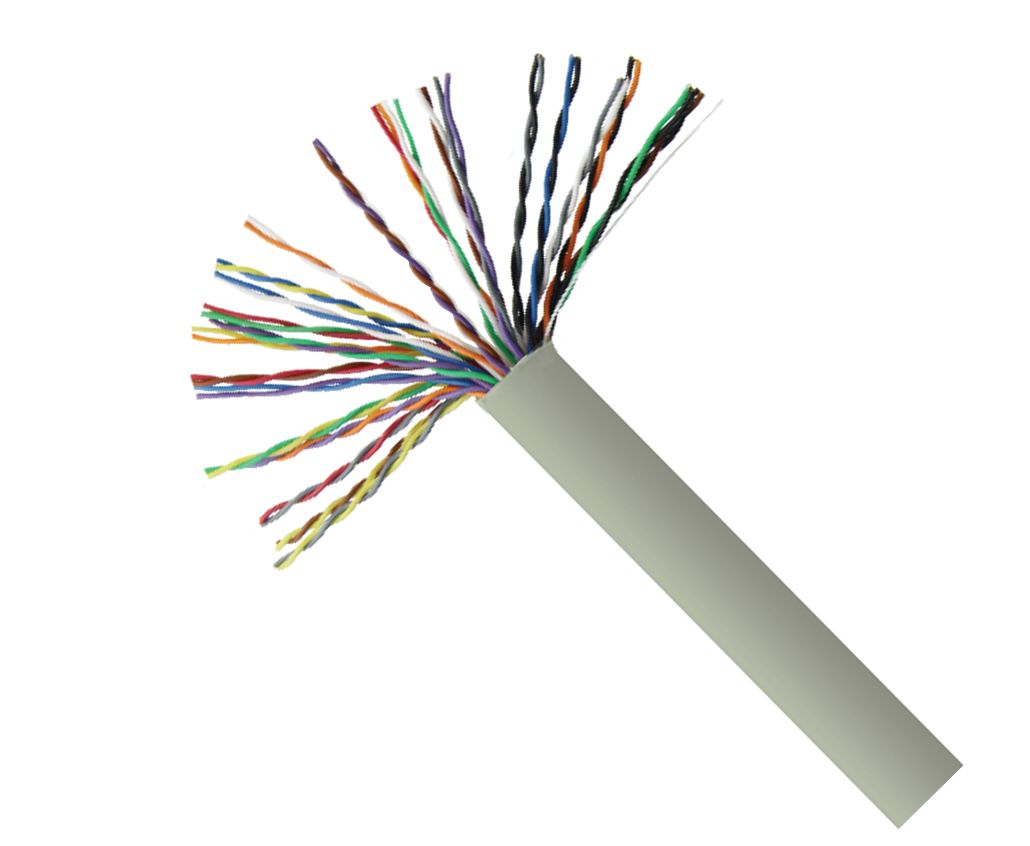

Commscope 1061F SL 25/24 R4000 | PowerSUM 1061F ETL Verified Category 5e U/UTP Cable, non-plenum, slate jacket, 25 pair count, 4000 ft (1219 m) length, reel
Regular price
$9.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 1061F SL 25/24 R4000 | PowerSUM 1061F ETL Verified Catego...
Regular price
$9.56
Unit price
Brand: CommScope
|
SKU:
CM-02524MAX-5-MT
Regular price
$9.56
Unit price
Shipping calculated at checkout.
Description
Description
Commscope 1061F SL 25/24 R4000 | PowerSUM 1061F ETL Verified Category 5e U/UTP Cable, non-plenum, slate jacket, 25 pair count, 4000 ft (1219 m) length, reel
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | SYSTIMAX |
| Product Type | Twisted pair cable |
| Product Brand | PowerSUM |
General Specifications
| Product Number | 1061F |
|---|---|
| ANSI/TIA Category | 5e |
| Cable Component Type | Backbone |
| Cable Type | U/UTP (unshielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 50 |
| Jacket Color | Slate |
| Pairs, quantity | 25 |
| Separator Type | Bisector |
| Subunit, quantity | 7 |
| Transmission Standards | ANSI/TIA-568.2-D / CENELEC EN 50288-3-1 / ISO/IEC 11801 Class D |
Dimensions
| Cable Length | 1219.2 m / 4000 ft |
|---|---|
| Cable Length Tolerance | ±5% |
| Diameter Over Jacket, nominal | 13.462 mm / 0.53 in |
| Jacket Thickness | 0.686 mm / 0.027 in |
| Conductor Gauge, singles | 24 AWG |
Electrical Specifications
| dc Resistance Unbalance, maximum | 0.05 |
|---|---|
| dc Resistance, maximum | 9.38 ohms/100 m / 2.859 ohms/100 ft |
| Dielectric Strength, minimum | 1500 Vac / 2500 Vdc |
| Mutual Capacitance at Frequency | 5.6 nF/100 m |
| 1 kHz | Nominal Velocity of Propagation (NVP) |
| 0.69 | Operating Frequency, maximum |
| 100 MHz | Operating Voltage, maximum |
| 80 V | Remote Powering |
Material Specifications
| Conductor Material | Bare copper |
|---|---|
| Insulation Material | Polyolefin |
| Jacket Material | PVC |
| Separator Material | Polyolefin |
Mechanical Specifications
| Pulling Tension, maximum | 11.34 kg / 25 lb |
|---|
Environmental Specifications
| Installation temperature | 0 °C to +60 °C (+32 °F to +140 °F) |
|---|---|
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Environmental Space | Non-plenum |
| Flame Test Method | CMR |
Packaging and Weights
| Cable weight | 168.163 kg/km / 113 lb/kft |
|---|---|
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
