Brand: CommScope
|
SKU:
463976

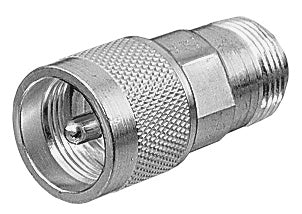

Commscope 10805-12 | Type N Female to UHF Male Adapter
Regular price
$40.68
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 10805-12 | Type N Female to UHF Male Adapter
Regular price
$40.68
Unit price
Description
Description
Commscope 10805-12 | Type N Female to UHF Male Adapter
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Adapter |
|---|
General Specifications
| Body Style | Straight |
|---|---|
| Inner Contact Plating | Gold / Silver |
| Interface | N Female |
| Interface 2 | UHF Male |
| Mounting Angle | Straight |
| Outer Contact Plating | Nickel |
| Pressurizable | No |
Dimensions
| Width | 19.05 mm / 0.75 in |
|---|---|
| Length | 38.1 mm / 1.5 in |
| Diameter | 19.05 mm / 0.75 in |
Electrical Specifications
| Average Power at Frequency | 300.0 W/900 MHz |
|---|---|
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Inner Contact Resistance, maximum | 5 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 5 mOhm |
Mechanical Specifications
| Insertion Force | 28 N / 6.295 lbf |
|---|---|
| Insertion Force Method | IEC 61169-16:9.3.5 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-12:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C / 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 54 g / 0.119 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
