Brand: CommScope
|
SKU:
CM-00424X10D-10BU06L

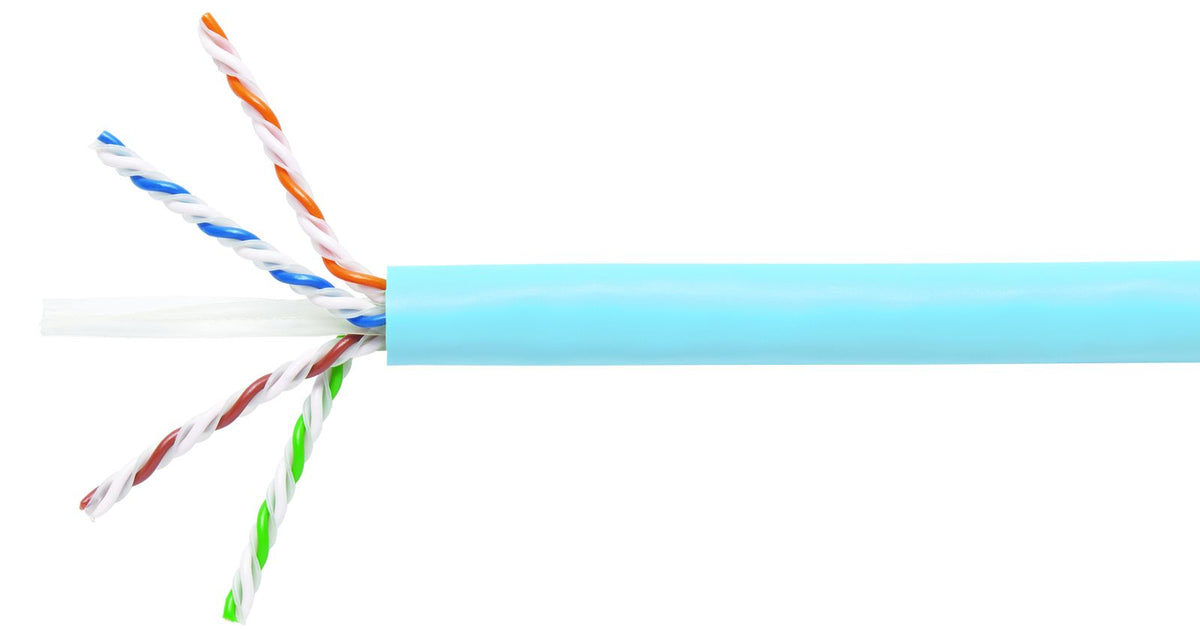

Commscope 1091B LBL C6A 4/23 U/UTP W1000 | GigaSPEED X10D 1091B ETL Verified Category 6A U/UTP Cable, light blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE box
Regular price
$1.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 1091B LBL C6A 4/23 U/UTP W1000 | GigaSPEED X10D 1091B ETL...
Regular price
$1.45
Unit price
Brand: CommScope
|
SKU:
CM-00424X10D-10BU06L
Regular price
$1.45
Unit price
Shipping calculated at checkout.
Description
Description
Commscope 1091B LBL C6A 4/23 U/UTP W1000 | GigaSPEED X10D 1091B ETL Verified Category 6A U/UTP Cable, light blue jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE box
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / Latin America / North America |
|---|---|
| Portfolio | SYSTIMAX |
| Product Type | Twisted pair cable |
| Product Brand | GigaSPEED X10D |
General Specifications
| Product Number | 1091B |
|---|---|
| ANSI/TIA Category | 6A |
| Cable Component Type | Horizontal |
| Cable Type | U/UTP (unshielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 8 |
| Jacket Color | Light blue |
| Pairs, quantity | 4 |
| Separator Type | Isolator |
| Transmission Standards | ANSI/TIA-568.2-D / ISO/IEC 11801 Class EA |
Dimensions
| Cable Length | 304.8 m / 1000 ft |
|---|---|
| Diameter Over Conductor | 0.864 mm / 0.034 in |
| Diameter Over Jacket, nominal | 7.239 mm / 0.285 in |
| Jacket Thickness | 1.295 mm / 0.051 in |
| Conductor Gauge, singles | 23 AWG |
Electrical Specifications
| Characteristic Impedance | 100 ohm |
|---|---|
| Characteristic Impedance Tolerance | ±15 ohm |
| dc Resistance Unbalance, maximum | 0.04 |
| dc Resistance, maximum | 7.61 ohms/100 m / 2.32 ohms/100 ft |
| Dielectric Strength, minimum | 1500 Vac / 2500 Vdc |
| LP (Limited Power) Rating | 0.5 A |
| Mutual Capacitance at Frequency | 6.0 nF/100 m |
| 1 kHz | Nominal Velocity of Propagation (NVP) |
| 0.65 | Operating Frequency, maximum |
| 550 MHz | Operating Voltage, maximum |
| 80 V | Remote Powering |
Material Specifications
| Conductor Material | Bare copper |
|---|---|
| Insulation Material | Polyolefin |
| Jacket Material | PVC |
| Separator Material | Polyolefin |
| Separator 2 Material | Polyolefin |
Mechanical Specifications
| Pulling Tension, maximum | 11.34 kg / 25 lb |
|---|
Environmental Specifications
| Installation temperature | 0 °C to +60 °C (+32 °F to +140 °F) |
|---|---|
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Environmental Space | Non-plenum |
| Temperature Rating, UL | 90 °C / 194.000 °F |
| Flame Test Method | CMR |
Packaging and Weights
| Cable weight | 55.509 kg/km / 37.3 lb/kft |
|---|---|
| Packaging Type | WE TOTE box |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
