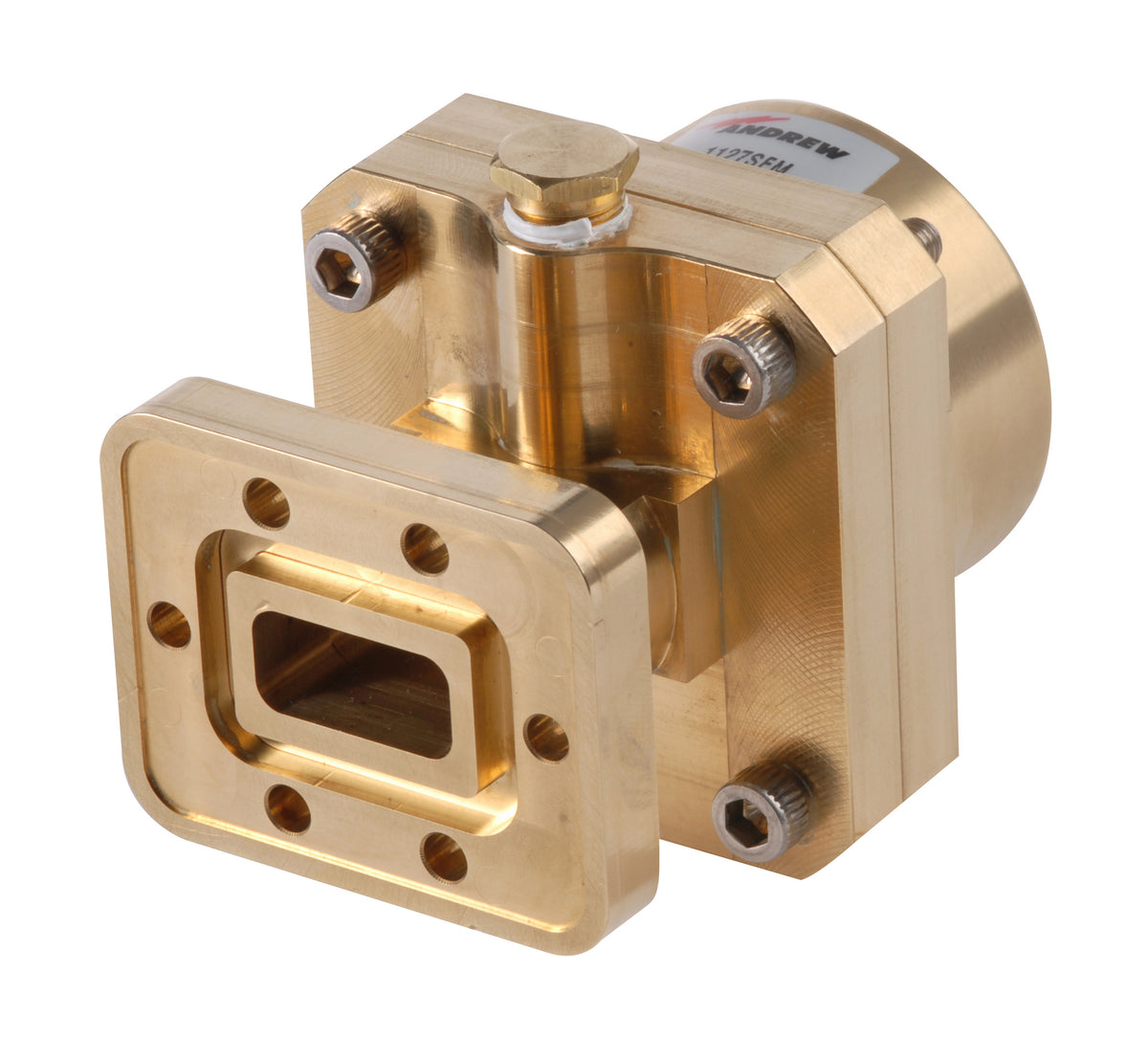

Commscope 1127SEM | Fixed-tuned PDR120 for elliptical waveguide 127
Regular price
$407.28
Unit price
Brand: CommScope
|
SKU:
463980
Regular price
$407.28
Unit price
Description
Description
Commscope 1127SEM | Fixed-tuned PDR120 for elliptical waveguide 127
Specifications
Specifications
Product Classification
| Product Type | Elliptical waveguide connector |
|---|
General Specifications
| Attachment Method | Tab-flare / Tool-flare |
|---|---|
| Body Style | Straight, fixed-tuned |
| Inner Contact Plating | Unplated |
| Interface | PDR120 |
| Outer Contact Plating | Unplated |
| Pressurizable | Yes |
Dimensions
| Width | 57.404 mm / 2.26 in |
|---|---|
| Length | 72.39 mm / 2.85 in |
| Transition Length | 39.37 mm / 1.55 in |
| Waveguide Size | WR75 / WG17 / R120 |
Electrical Specifications
| Insertion Loss, typical | 0.01 dB |
|---|---|
| Operating Frequency Band | 11.7 – 13.25 GHz |
| Peak Power at Frequency, maximum | 34.00 kW @ 12.70 GHz |
Material Specifications
| Material Type | Brass |
|---|
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
Packaging and Weights
| Weight, net | 0.7 kg / 1.543 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
