Brand: CommScope
|
SKU:
463991

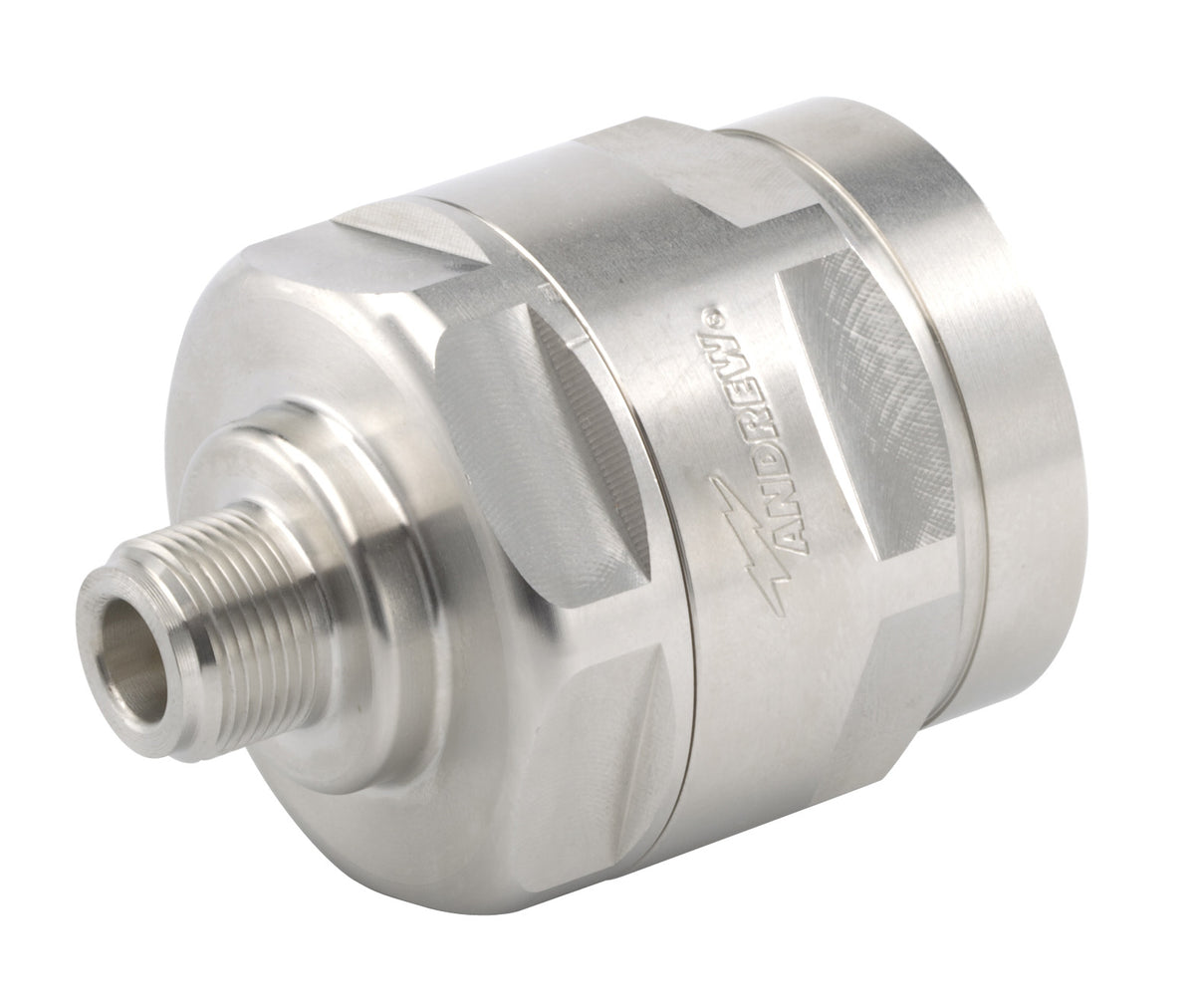

Commscope 114EZNF | Type N Female EZfit for 1-1/4 in FXL1480 and AVA6-50 cable
Regular price
$46.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 114EZNF | Type N Female EZfit for 1-1/4 in FXL1480 and AV...
Regular price
$46.06
Unit price
Description
Description
Commscope 114EZNF | Type N Female EZfit for 1-1/4 in FXL1480 and AVA6-50 cable
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | EZfit |
| Product Series | AVA6-50 / AVA6RK-50 |
| Ordering Note | CommScope standard product (Global) |
General Specifications
| Body Style | Straight |
|---|---|
| Cable Family | AVA6-50 / FXL-1480 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Length | 65.79 mm / 2.590 in |
|---|---|
| Diameter | 49.02 mm / 1.930 in |
| Nominal Size | 1-1/4 in |
Electrical Specifications
| 3rd Order IMD at Frequency | -116 dBm/1800 MHz |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.05 dB |
| Average Power at Frequency | 0.6 kW/900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Inner Contact Resistance, maximum | 2 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 3300 MHz |
| Outer Contact Resistance, maximum | 0.3 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
Mechanical Specifications
| Attachment Durability | 25 cycles |
|---|---|
| Connector Retention Tensile Force | 1334.47 N / 300.000 lbf |
| Connector Retention Torque | 8.14 N-m / 72.001 in lb |
| Insertion Force | 66.72 N / 15.000 lbf |
| Insertion Force Method | IEC 61169-1:15.2.4 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Corrosion Test Method | IEC 60068-2-11, Test Condition Ka |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60529, IP68 |
| Vibration Test Method | IEC 60068-2-6 |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and Weights
| Weight, net | 284 g / 0.626 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Drill Tool for 540, 780, 1480 and 1873 EZfit Series Connectors for HELIAX SFX, FXL Cables
- Hand Tool for 540, 780, 1480 and 1873 EZfit Series Connectors for HELIAX SFX, FXL Cables
- Statement of Compliance RoHS/REACH
- 114EZNF Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- CommScope Limited Product Warranty
