Commscope 114EZNM | Type N Male EZfit for 1-1/4 in FXL1480 and AVA6-50 cable

$50.26
Shipping calculated at checkout.

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

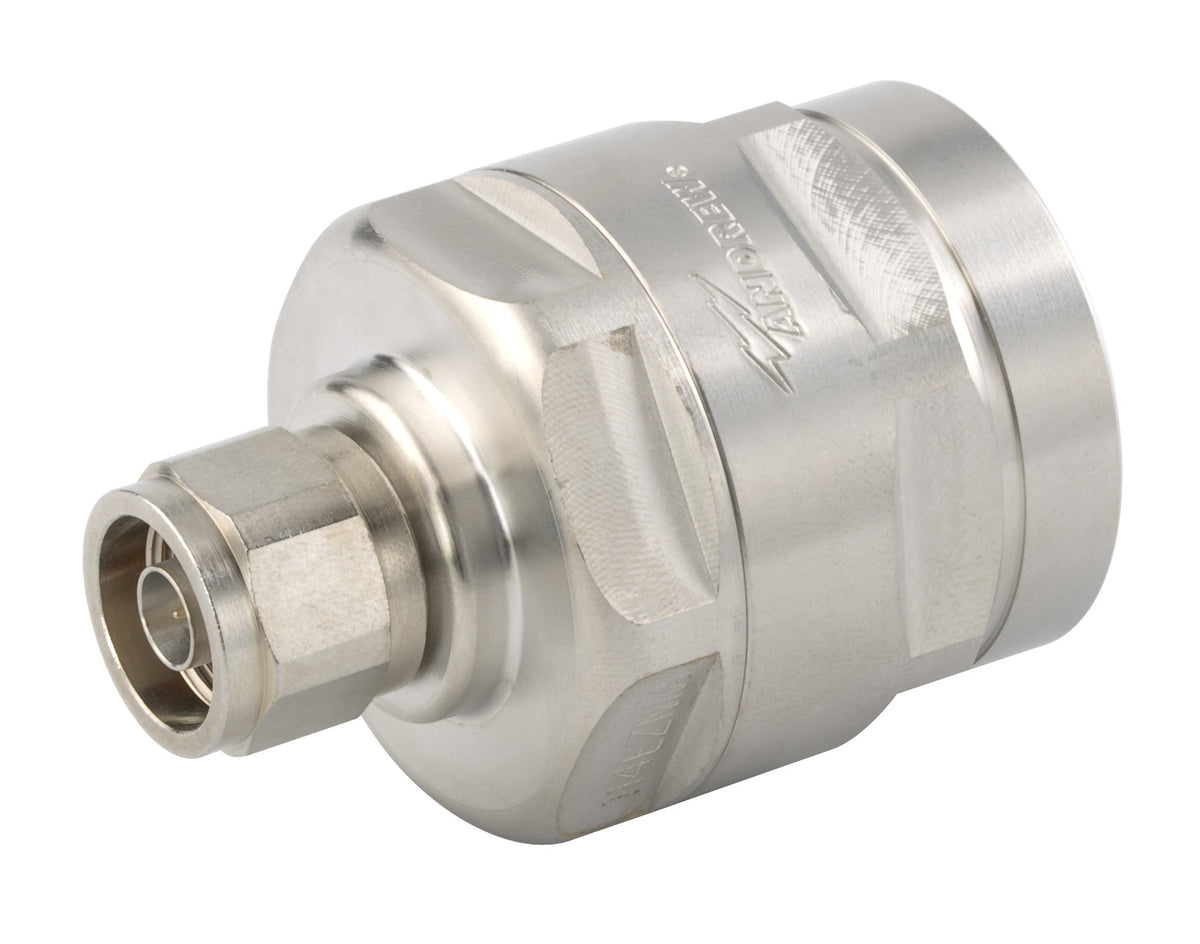

Commscope 114EZNM | Type N Male EZfit for 1-1/4 in FXL1480 and AVA6-50 cable

Specifications

Outline Drawing

Click on image to enlarge.

Product Classification

PortfolioCommScope
Product TypeWireless and radiating connector
Product BrandEZfit
Product SeriesAVA6-50 / AVA6RK-50
Ordering NoteCommScope standard product (Global)

General Specifications

Body StyleStraight
Inner Contact Attachment MethodCaptivated
Inner Contact PlatingSilver
InterfaceN Male
Mounting AngleStraight
Outer Contact Attachment MethodClamp
Outer Contact PlatingTrimetal
PressurizableNo

Dimensions

Length71.88 mm / 2.830 in
Diameter49.02 mm / 1.930 in
Nominal Size1-1/4 in

Electrical Specifications

3rd Order IMD at Frequency-116 dBm @ 1800 MHz
3rd Order IMD Test MethodTwo +43 dBm carriers
Insertion Loss, typical0.05 dB
Average Power at Frequency0.6 kW @ 900 MHz
Cable Impedance50 ohm
Connector Impedance50 ohm
dc Test Voltage2000 V
Inner Contact Resistance, maximum2 mOhm
Insulation Resistance, minimum5000 mOhm
Operating Frequency Band0 – 3300 MHz
Outer Contact Resistance, maximum0.3 mOhm
Peak Power, maximum10 kW
RF Operating Voltage, maximum (vrms)707 V
Shielding Effectiveness-130 dB

Mechanical Specifications

Attachment Durability25 cycles
Connector Retention Tensile Force1334.47 N / 300.000 lbf
Connector Retention Torque8.14 N-m / 72.001 in lb
Coupling Nut Proof Torque24.86 N-m / 220.003 in lb
Coupling Nut Retention Force1000.85 N / 225.000 lbf
Coupling Nut Retention Force MethodMIL-C-39012C-3.25, 4.6.22
Insertion Force66.72 N / 15.000 lbf
Insertion Force MethodIEC 61169-1:15.2.4
Interface Durability500 cycles
Interface Durability MethodIEC 61169-4:9.5
Mechanical Shock Test MethodMIL-STD-202F, Method 213B, Test Condition C

Environmental Specifications

Operating Temperature-40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature-55 °C to +85 °C (-67 °F to +185 °F)
Attenuation, Ambient Temperature20 °C / 68 °F
Average Power, Ambient Temperature40 °C / 104 °F
Corrosion Test MethodMIL-STD-1344A, Method 1001.1, Test Condition A
Immersion Depth1 m
Immersion Test MatingMated
Immersion Test MethodIEC 60529:2001, IP68
Moisture Resistance Test MethodMIL-STD-202F, Method 106F
Vibration Test MethodIEC 60068-2-6
Water Jetting Test MatingMated
Water Jetting Test MethodIEC 60529:2001, IP66

Packaging and Weights

Weight, net302 g / 0.666 lb

Regulatory Compliance/Certifications

ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHSCompliant
CHINA-ROHSBelow maximum concentration value
REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance

Documents and Downloads
