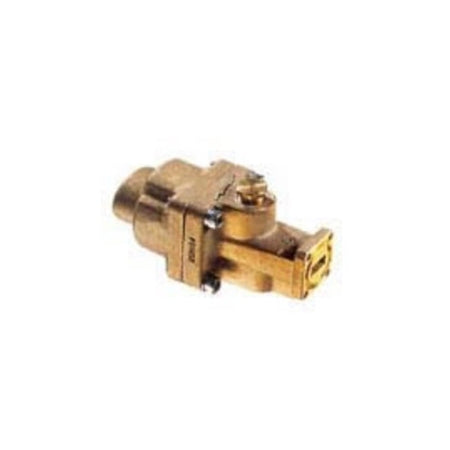

Commscope 1180SCM | Fixed-tuned PBR220 for elliptical waveguide 180
Regular price
$458.17
Unit price
Brand: CommScope
|
SKU:
464001
Regular price
$458.17
Unit price
Description
Description
Commscope 1180SCM | Fixed-tuned PBR220 for elliptical waveguide 180
Specifications
Specifications
Product Classification
| Product Type | Elliptical waveguide connector |
|---|
General Specifications
| Attachment Method | Tab-flare / Tool-flare |
|---|---|
| Body Style | Straight, fixed-tuned |
| Inner Contact Plating | Unplated |
| Interface | PBR220 |
| Outer Contact Plating | Unplated |
| Pressurizable | Yes |
Dimensions
| Width | 38.1 mm / 1.5 in |
|---|---|
| Length | 64.262 mm / 2.53 in |
| Transition Length | 26.924 mm / 1.06 in |
| Waveguide Size | WR42 / WG20 / R220 |
Electrical Specifications
| Insertion Loss, typical | 0.01 dB |
|---|---|
| Operating Frequency Band | 17.7 – 19.7 GHz |
| Peak Power at Frequency, maximum | 7.30 kW @ 18.70 GHz |
Material Specifications
| Material Type | Brass |
|---|
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
Packaging and Weights
| Weight, net | 0.4 kg / 0.882 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
